(1.81.9/01) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926)

Запчасти Case IH MAXXUM 110 (1.81.9/01) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926) (07) - HYDRAULIC SYSTEM

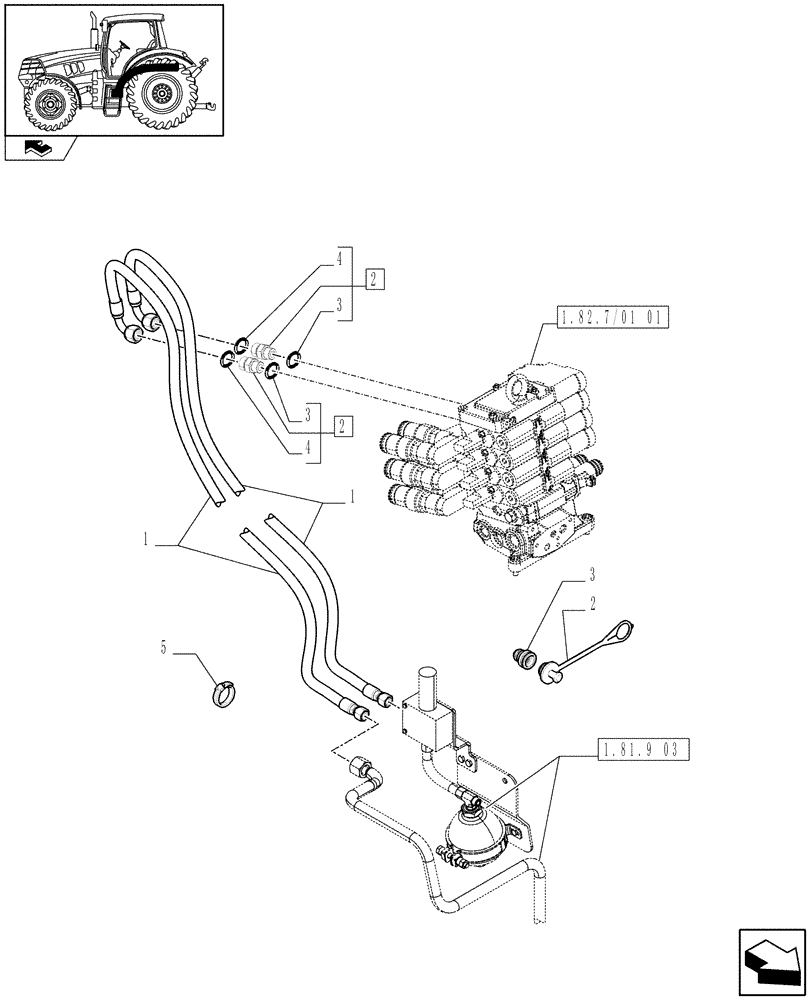

Схема запчастей Case IH MAXXUM 110 - (1.81.9/01) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926) (07) - HYDRAULIC SYSTEM
4
2
1
1
5
3
home
1.81.9 03
1.82.7/01 01
3
2
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057676

FLEXIBLE HOSE,Hyd, 12mm ID x 2860mm L

2шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

1

47057675

FLEXIBLE HOSE,Hyd, 12mm ID x 3100mm L

2шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

2

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

3

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

Выбрано товаров: 8
