(1.75.1/03) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (VAR.339782)

Запчасти Case IH MAXXUM 110 (1.75.1/03) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (VAR.339782) (06) - ELECTRICAL SYSTEMS

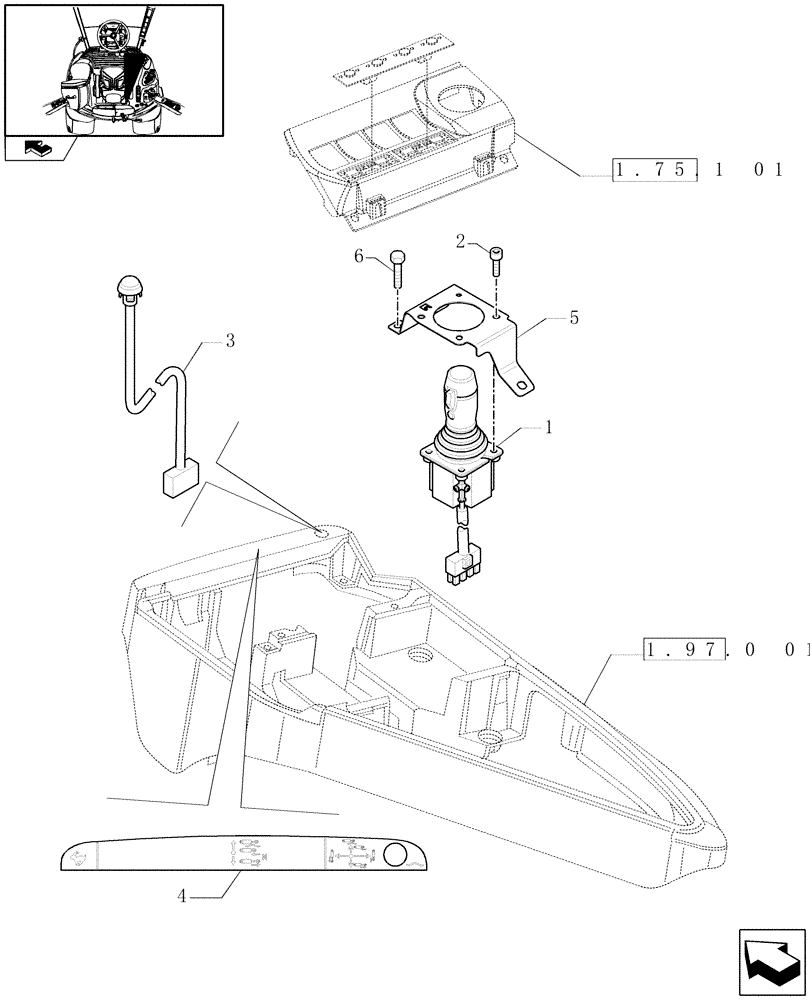

Схема запчастей Case IH MAXXUM 110 - (1.75.1/03) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (VAR.339782) (06) - ELECTRICAL SYSTEMS
3
1
4
5
1.97.0 01
1.75.1 01
home
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84208738

JOYSTICK

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

1шт.

4

84126448

DECAL

1шт.

5

84202338

BRACKET

1шт.

6

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.
