(1.75.0/05) - HYDRAULIC TRAILER BRAKE (ITALY) - SOLENOID VALVES AND SENSORS (VAR.331723)

Запчасти Case IH MAXXUM 110 (1.75.0/05) - HYDRAULIC TRAILER BRAKE (ITALY) - SOLENOID VALVES AND SENSORS (VAR.331723) (06) - ELECTRICAL SYSTEMS

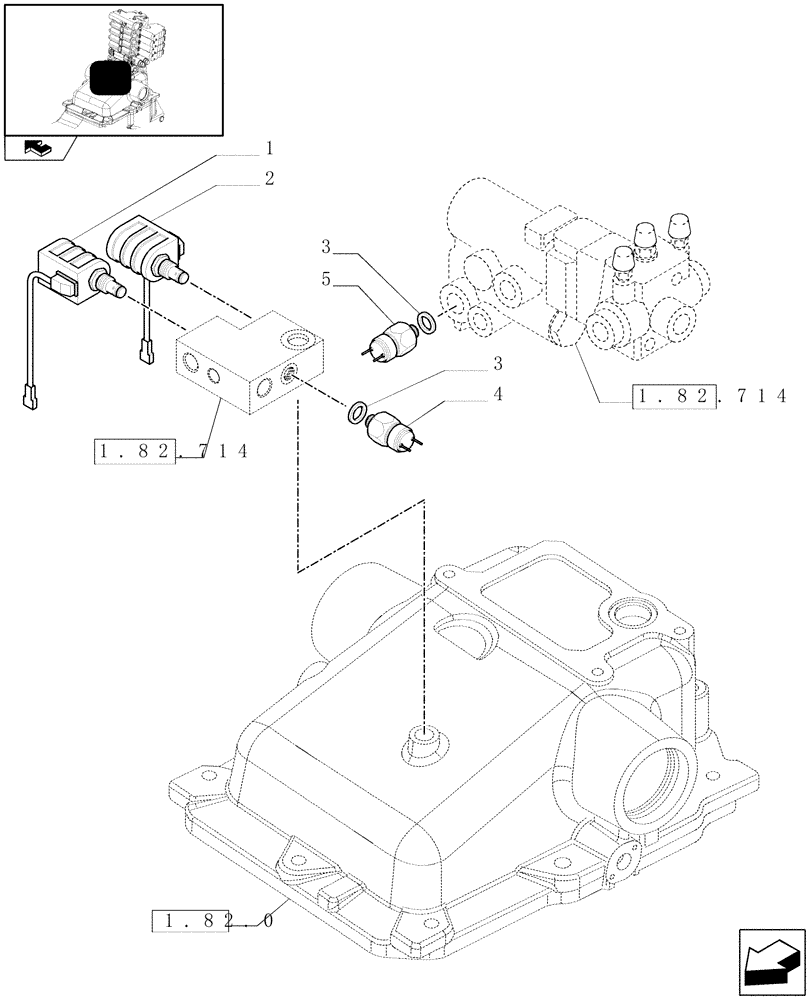

Схема запчастей Case IH MAXXUM 110 - (1.75.0/05) - HYDRAULIC TRAILER BRAKE (ITALY) - SOLENOID VALVES AND SENSORS (VAR.331723) (06) - ELECTRICAL SYSTEMS
2
1
3
4
home
1.82.0
1.82.714
1.82.714
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

2

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

3

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

4

87494633

PRESSURE SWITCH

Pressure, 10 bar

1шт.

5

87604423

SWITCH ASSY

Pressure, 15 bar

1шт.
