(1.75.0[10]) - BRAKE SYSTEM AND CLUTCH PEDAL SWITCHES

Запчасти Case IH MAXXUM 110 (1.75.0[10]) - BRAKE SYSTEM AND CLUTCH PEDAL SWITCHES (06) - ELECTRICAL SYSTEMS

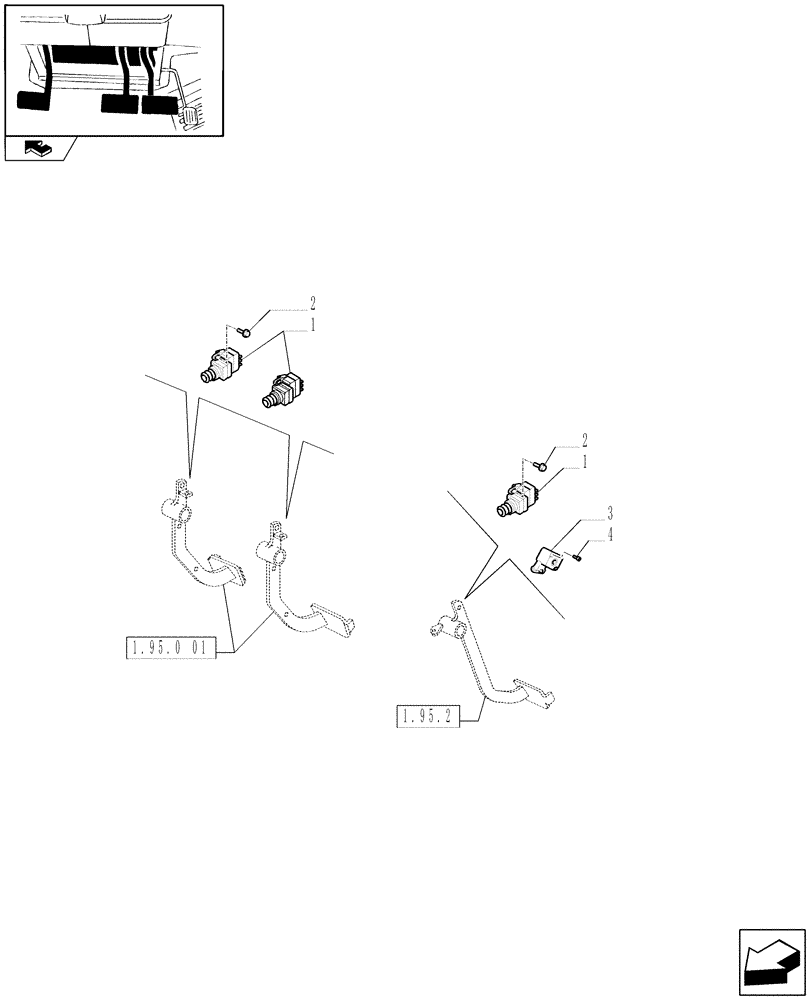

Схема запчастей Case IH MAXXUM 110 - (1.75.0[10]) - BRAKE SYSTEM AND CLUTCH PEDAL SWITCHES (06) - ELECTRICAL SYSTEMS
4
2
1
1
home
1.95.0 01
3
1.95.2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82026949

PUSH BUTTON SWITCH

3шт.

2

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

6шт.

3

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

4

15211521

BOLT,Hex, M5 x 32mm, Cl 8.8, Full Thd

2шт.
