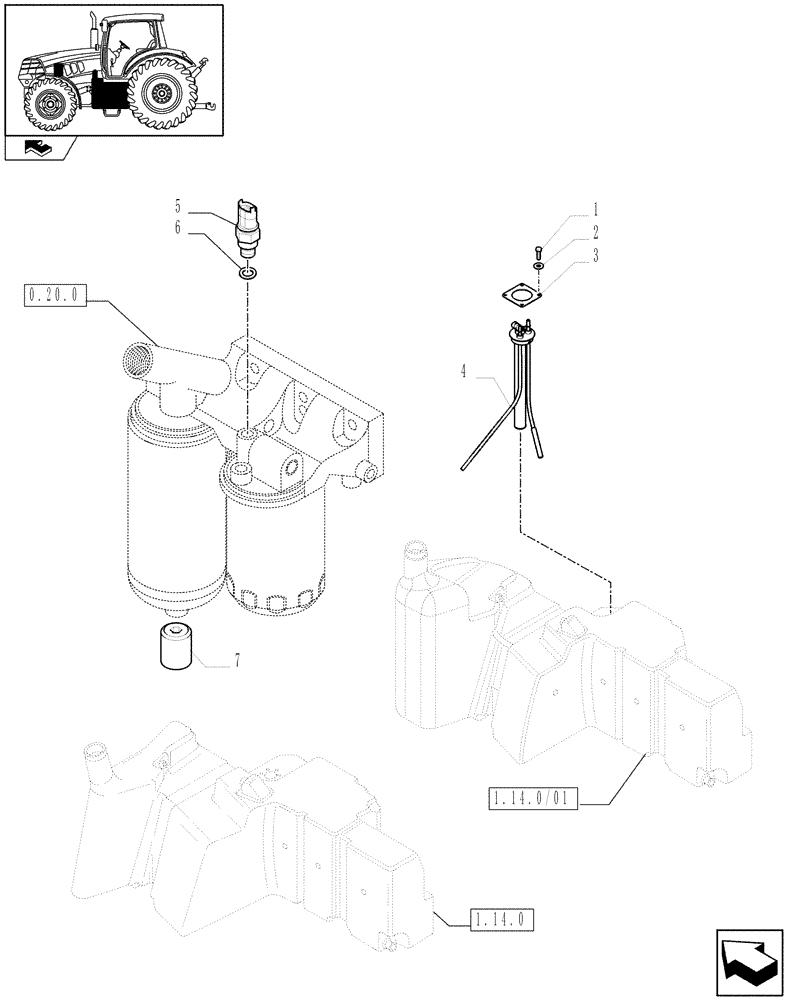

Запчасти Case IH MAXXUM 110 (1.75.0[02]) - FUEL SYSTEM GAUGE AND SENSORS (06) - ELECTRICAL SYSTEMS

1

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

2

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

3

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

Part is Included Also in 47479283 and 47478572 Assembly PN

1шт.

4

84417843

FUEL GAUGE

1шт.

Part is Included Also in 47479283 and 47478572 Assembly PN

1шт.

5

4897224

SENSOR

1шт.

Fuel Temperature

1шт.

6

4894721

SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk

1шт.

7

2853540

SENSOR

M10, Serial Range: -710158

1шт.

Water in Fuel Sensor

1шт.

7

2853585

SENSOR

M14, Start Serial: 710159

1шт.

Water in Fuel Sensor

1шт.
