(1.74.9/01) - AIR CONDITIONING WITH AUTOMATIC TEMPERATURE CONTROL - ELECTRONIC CONTROL UNIT (VAR.330643)

Запчасти Case IH MAXXUM 110 (1.74.9/01) - AIR CONDITIONING WITH AUTOMATIC TEMPERATURE CONTROL - ELECTRONIC CONTROL UNIT (VAR.330643) (06) - ELECTRICAL SYSTEMS

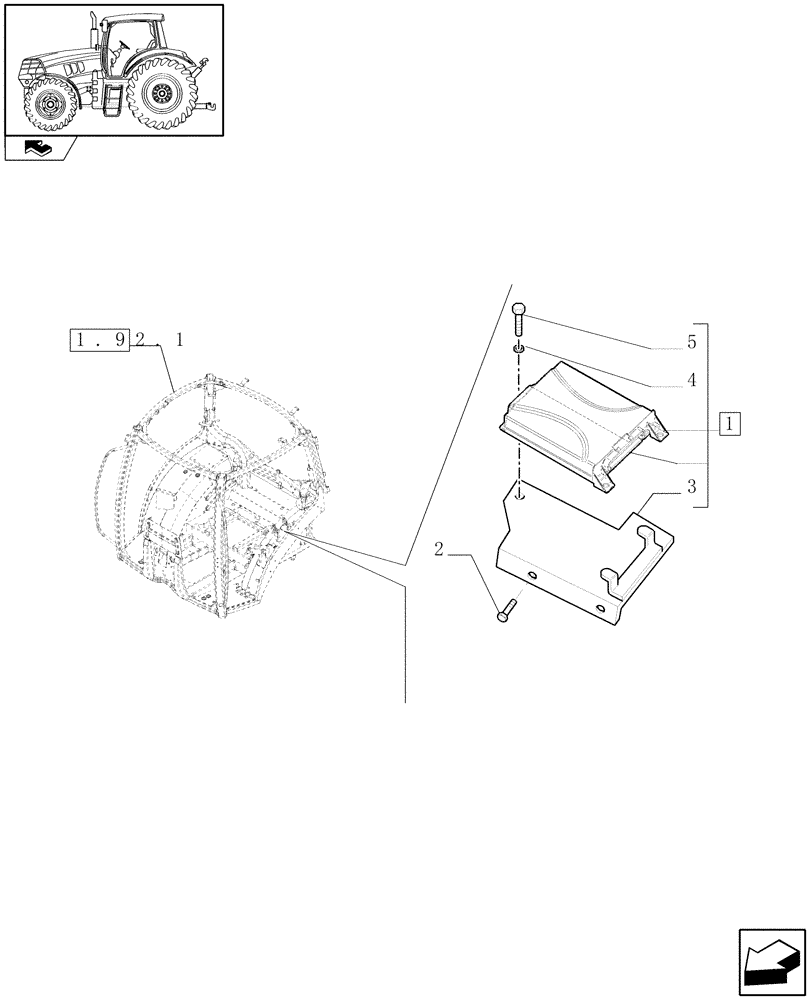

Схема запчастей Case IH MAXXUM 110 - (1.74.9/01) - AIR CONDITIONING WITH AUTOMATIC TEMPERATURE CONTROL - ELECTRONIC CONTROL UNIT (VAR.330643) (06) - ELECTRICAL SYSTEMS
1
4
5
1.92.1
3
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84214115

ECU

ASSY

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

3

87540518

SUPPORT

1шт.

4

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

5

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

1шт.
