Запчасти Case IH MAXXUM 110 (1.42.0[04]) - POWER STEERING DELIVERY AND RETURN PIPES FOR FAST STEER (04) - FRONT AXLE & STEERING

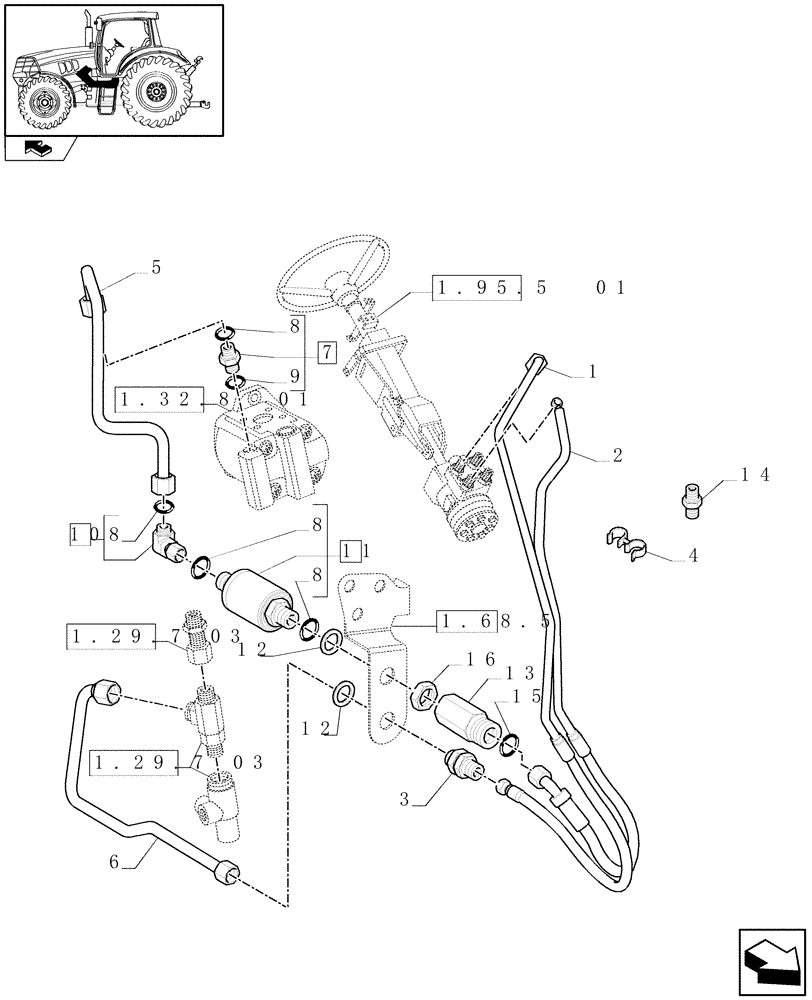

Схема запчастей Case IH MAXXUM 110 - (1.42.0[04]) - POWER STEERING DELIVERY AND RETURN PIPES FOR FAST STEER (04) - FRONT AXLE & STEERING
12
3
1.95.5 01
1.32.8 01
16
9
12
1
10
2
home
1.29.7 03
1.29.7 03
5
1.68.5
15
4
8
8
8
14
6
13
11
8
7

Артикул

Название

Примечание

Количество

1

84182538

HYD TUBE,13 mm ID x 16 mm OD

Power Steering Return

1шт.

1

84182552

HYD TUBE,13 mm ID x 16 mm OD

1шт.

Cab Suspension and Cab Hoses for Faststeer, VAR.331658

1шт.

2

84182546

HYD TUBE,13 mm ID x 16 mm OD

Power Steering Feed

1шт.

2

84182551

HYD TUBE,13 mm ID x 16 mm OD

1шт.

Cab Suspension and Cab Hoses for Faststeer, VAR.331658

1шт.

3

84169871

HYD CONNECTOR

1шт.

4

82035888

CLIP,16mm

1шт.

5

84168462

PIPE

To Steering Motor

1шт.

6

84168465

TUBE,16 mm OD

From Steering Motor

1шт.

7

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.

11

84169702

FILTER

DEF FILTER

1шт.

12

84169872

SPACER

2шт.

13

87319429

FILTER,1" - 14 ORFS x 1" - 14 THREADED

1шт.

14

82030315

HYD CONNECTOR

1шт.

15

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

Выбрано товаров: 20
