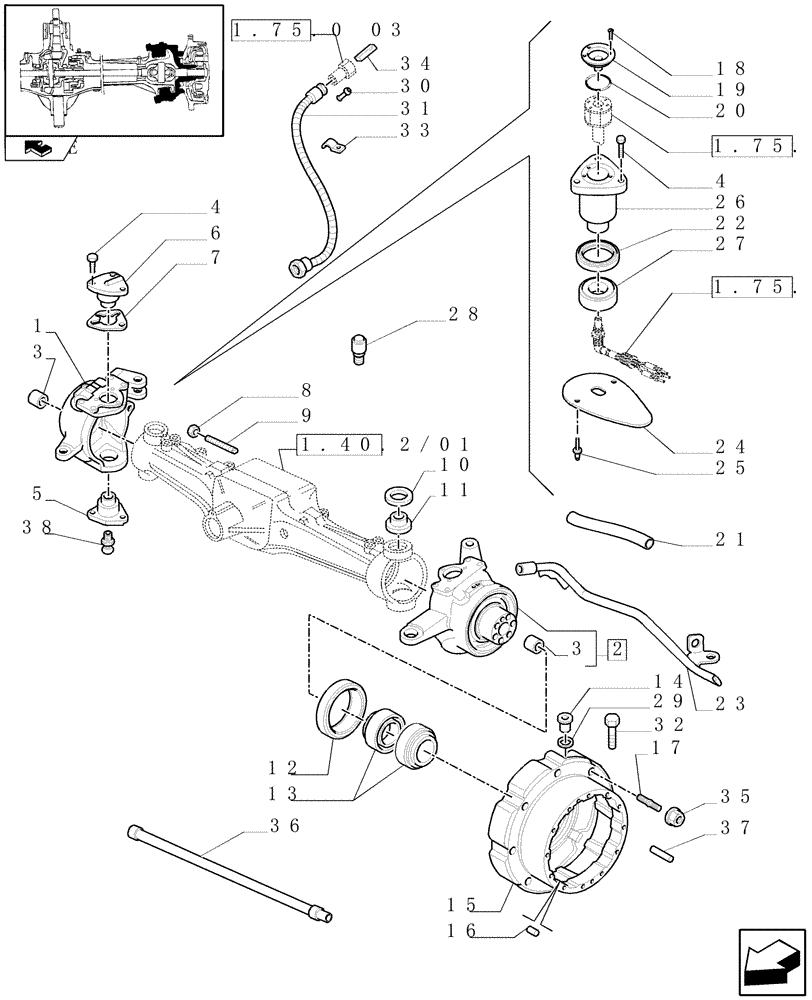

Запчасти Case IH MAXXUM 110 (1.40.2/02) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIF. LOCK, ST. SENSOR AND BRAKES - STEERING AXLES AND HUBS (VAR.330427) (04) - FRONT AXLE & STEERING

1

84197134

KNUCKLE

ASSY. RH, Incl. 3

1шт.

2

84197105

KNUCKLE

ASSY. LH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

87333763

BALL STUD

BALL PIN

2шт.

6

87361688

BALL STUD

BALL PIN

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

0.25MM

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

0.30MM

1шт.

7

5087426

SHIM KIT

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190 x 220 x 15/17

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

14

10278301

PLUG,M28 x 1.5 x 11, Brass

1шт.

15

87529978

HUB

ASSY, Incl. 16

2шт.

16

4985063

DOWEL,12mm OD x 20mm L

4шт.

17

87618916

STUD

16шт.

18

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

19

84384510

TOP

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

87619627

HOSE PROTECTION

100MM

1шт.

22

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

23

87717287

HYD TUBE,12mm OD

1шт.

24

87315098

SHIELD

1шт.

25

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

26

87382577

BALL STUD

BALL PIN

1шт.

27

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

28

13413290

BREATHER

2шт.

29

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

28MM

1шт.

30

82918419

PLUG

1шт.

31

87658190

FLEXIBLE SHEATH

1шт.

32

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

33

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

34

82918451

SPACER

1шт.

35

87678013

NUT,M16 x 1.5

16шт.

36

87619680

FLEXIBLE SHEATH

1шт.

37

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

38

13407211

LUBE NIPPLE,M10 x 1

3шт.
