Запчасти Case IH MAXXUM 110 (1.40.0/01) - (CL.3) FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - BOX (04) - FRONT AXLE & STEERING

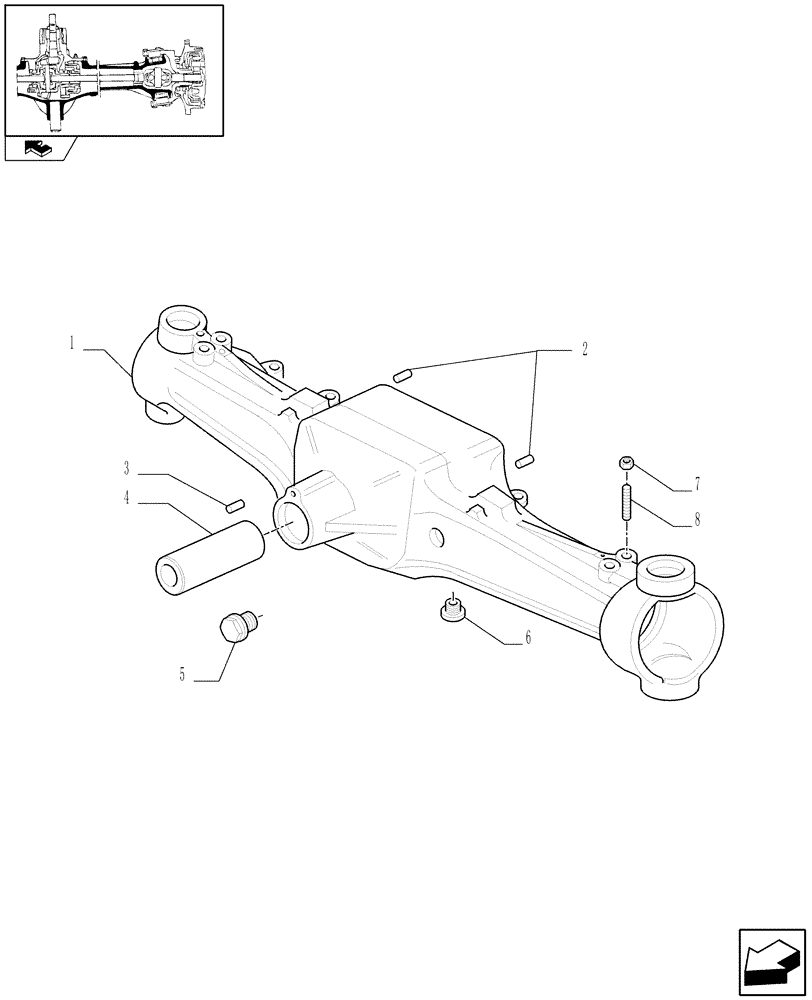

Схема запчастей Case IH MAXXUM 110 - (1.40.0/01) - (CL.3) FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - BOX (04) - FRONT AXLE & STEERING
5
3
7
home
8
6
1
4
2

Артикул

Название

Примечание

Количество

1

87633170

AXLE HOUSING

Incl. 2-4

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

M22 x 1.5

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1.5

1шт.

7

16101511

NUT,M12 x 1.25, Cl 8

2шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

Выбрано товаров: 8
