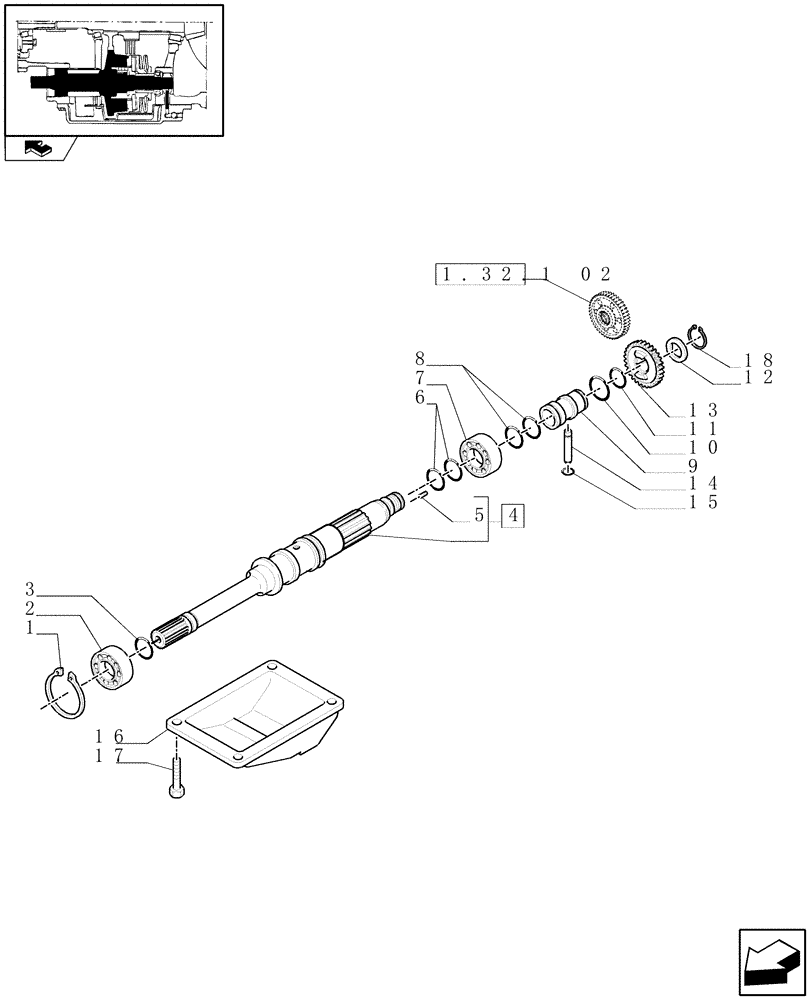

Запчасти Case IH MAXXUM 110 (1.33.1[02]) - FOUR WHEEL DRIVE - REAR AXLE - DRIVE SHAFT AND GUARD (04) - FRONT AXLE & STEERING

1

11062176

CIRCLIP,M85, Int

1шт.

2

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

3

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

4

5198208

SHAFT

1шт.

5

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

6

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35 x 80 x 21

1шт.

8

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

2шт.

9

47126668

MANIFOLD

1шт.

10

14459180

O-RING,45.69mm ID x 2.62"

1шт.

11

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

12

5193862

THRUST WASHER

With Heavy Duty Rear Axle, with Multicontroller/Pro Version

1шт.

13

5193858

GEAR

Driven, 54 teeth, Width=75.5MM

1шт.

14

47126672

PIN,10.5mm OD x 46.6mm L

1шт.

15

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

16

5193851

SHIELD

1шт.

17

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

18

5193966

CIRCLIP

1шт.
