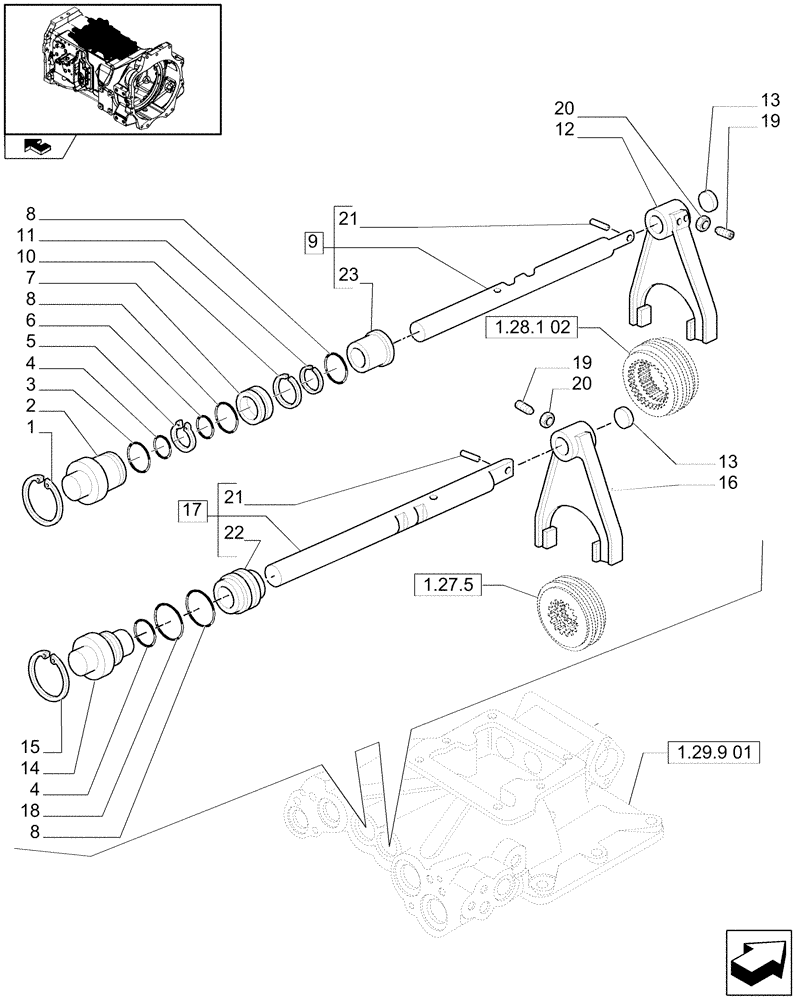

Запчасти Case IH MAXXUM 110 (1.29.9[02]) - TRANSMISSION 16X16 OR 17X16 - REVERSER COVER - RODS AND FORKS (03) - TRANSMISSION

1

11060676

CIRCLIP,M55, Int

1шт.

2

5199735

PLUG

1шт.

3

14459180

O-RING,45.69mm ID x 2.62"

1шт.

4

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

.937" ID x .139" Thk

4шт.

5

11067276

SNAP RING,M24, Ext

1шт.

6

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

7

5199737

PISTON RING,41.65mm OD x 23.8mm ID x 8mm Thk

1шт.

8

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

SEALRING

3шт.

9

47127527

ROD

ASSY

1шт.

10

13422176

CIRCLIP,M26, Int

1шт.

11

13398876

SNAP RING,M38, Int

1шт.

12

82852615

CLEVIS

Speed

1шт.

13

83417039

PLUG

2шт.

14

5199732

PLUG

1шт.

15

11060276

SNAP RING,M47, Int

1шт.

16

82007504

SHIFTER FORK

Reverser

1шт.

17

5199730

ROD

1шт.

18

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

19

82895780

SET SCREW,less Hex Socket, M10 x 20mm

M10 x 20

4шт.

20

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

4шт.

21

82015193

PIN

2шт.

22

82015192

PISTON

1шт.

23

47127530

PISTON

1шт.
