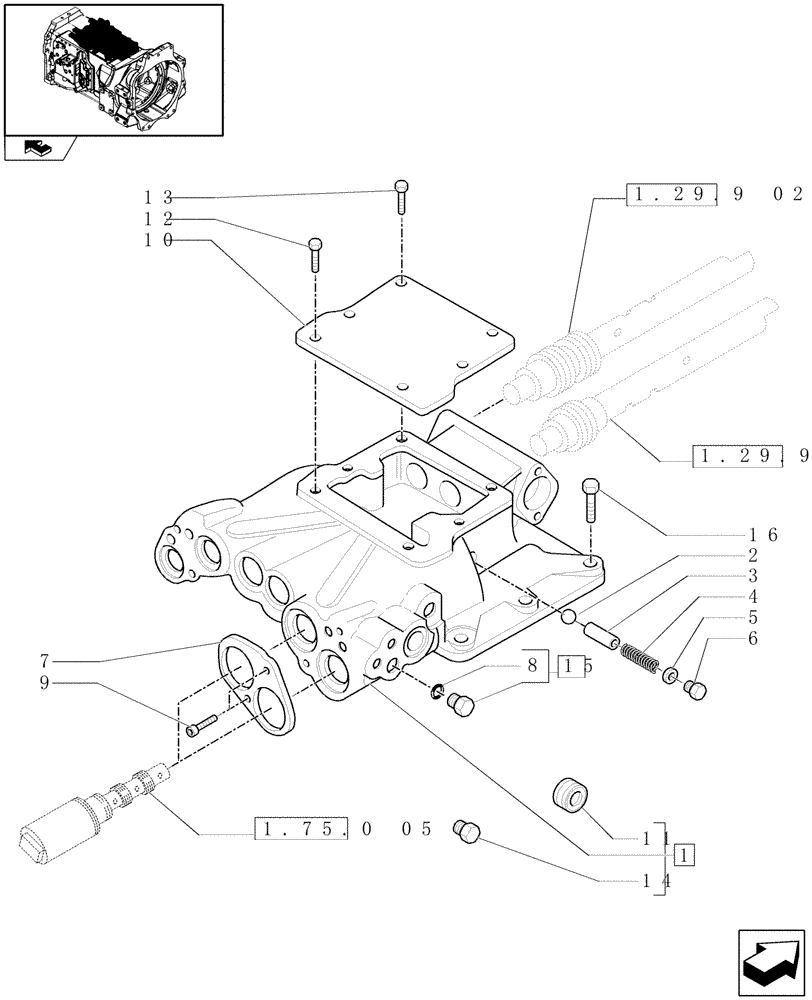

Запчасти Case IH MAXXUM 110 (1.29.9[01]) - TRANSMISSION 16X16 OR 17X16 - REVERSER COVER - HOUSING AND RELATED PARTS (03) - TRANSMISSION

1

47127526

COVER ASSY

1шт.

2

88210005

BALL,10mm OD

D=10

2шт.

3

81864220

PLUNGER

2шт.

4

83407013

SPRING

2шт.

5

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6

83911570

HEX SOCKET PLUG,9/16"-18

2шт.

7

82022595

BRACKET

2шт.

8

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

9

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

10

82852617

PLATE

1шт.

11

82990913

BUSHING,42mm ID x 49.975 - 49.967mm OD x 24.50mm Thk

49.975/49.967MM

1шт.

11

82990914

BUSHING,42mm ID x 49.982 - 49.976mm OD x 24.50mm Thk

49.982/49.976MM

1шт.

11

82990915

BUSHING,42mm ID x 49.990 - 49.983mm OD x 24.50mm Thk

49.990/49.983MM

1шт.

11

82990916

BUSHING,42mm ID x 49.998 - 49.991mm OD x 24.50mm Thk

49.998/49.991MM

1шт.

11

82990917

BUSHING,42mm ID x 50.006 - 49.999mm OD x 24.50mm Thk

50.006/49.999MM

1шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

4шт.

14

14536490

PLUG,8.00mm Dia x 15.70mm L

D=8

12шт.

15

82857995

PLUG,7/16" - 20 ORB

4шт.

16

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.
