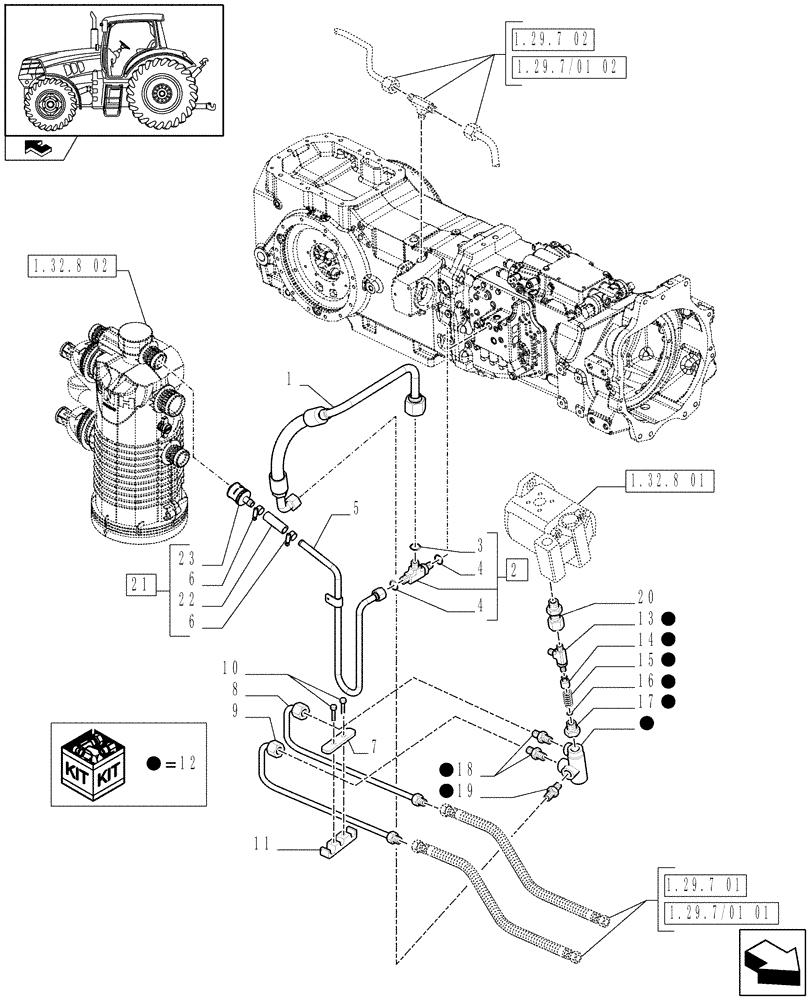

Запчасти Case IH MAXXUM 110 (1.29.7[03A]) - BY-PASS VALVE, LUBRICATION AND TRANSMISSION OIL COOLER PIPES - D7070 (03) - TRANSMISSION

1

84297046

FLEXIBLE HOSE

1шт.

By-Pass Valve Lubrification

1шт.

2

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

84352582

HYD TUBE

1шт.

Lubrication From Filter

1шт.

6

82039344

HOSE CLAMP,20mm - 32mm

2шт.

7

87636988

BRACKET

1шт.

8

84172716

TUBE,12 mm OD

To Oil Cooler

1шт.

9

84172718

TUBE,12 mm OD

From Oil Cooler

1шт.

10

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

11

84172921

CLAMP BRACKET

1шт.

12

87634972

BY-PASS VALVE

1шт.

13

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

1шт.

14

5169565

VALVE,By-Pass

1шт.

15

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

47123781

PLUG,M22 x 1.5

1шт.

18

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

19

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

20

84168451

HYD CONNECTOR

1шт.

21

84352585

HYD CONNECTOR

1шт.

22

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.

23

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.
