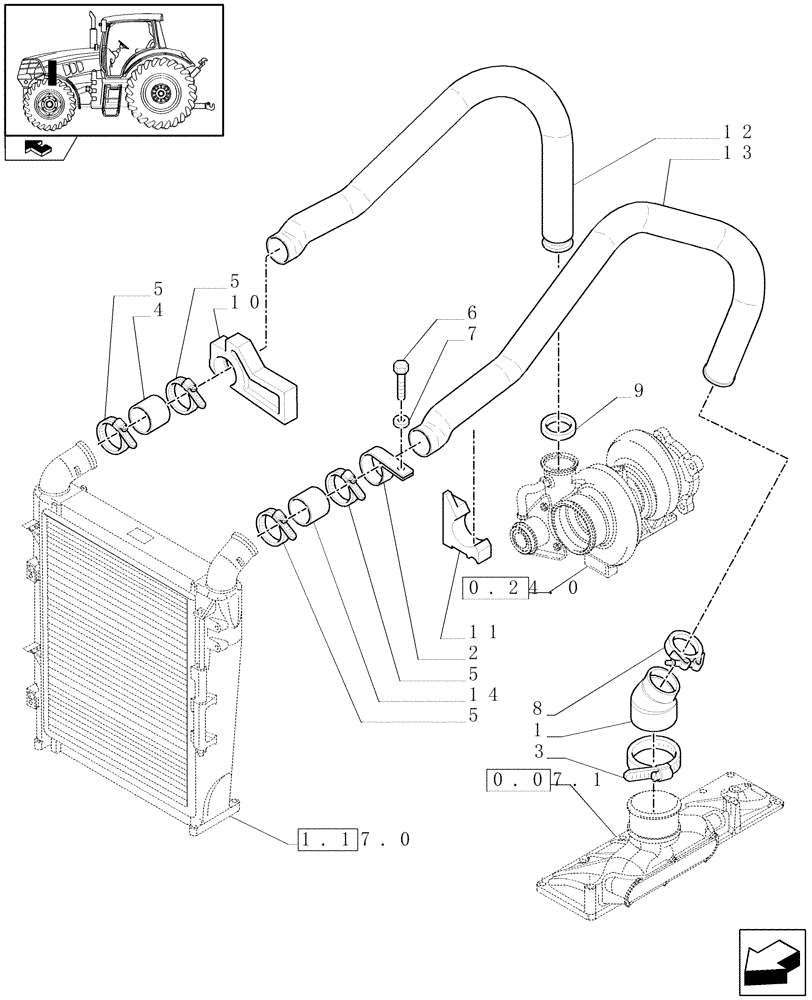

Запчасти Case IH MAXXUM 110 (1.19.6) - INTERCOOLER AND CONDENSER - PIPES (02) - ENGINE EQUIPMENT

1

82036507

HOSE,57.10 mm ID, 76.00 mm ID x 94.00 mm, SAE J20R4 Class C

1шт.

2

82036433

CLAMP,57.1mm ID, 12.7mm Bolt Hole, P Type

1шт.

3

82036354

HOSE CLAMP,70mm - 90mm

1шт.

4

87695004

HOSE,57.10 mm ID, SAE J20 R4

1шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

5шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

87524287

CLAMP

1шт.

9

14459081

O-RING,1.737" ID x 0.103" Width

1шт.

10

87312778

SEAL

1шт.

11

87519081

SEAL

1шт.

12

87689032

RIGID TUBE,59 mm OD x 669, 270 mm L

1шт.

13

87689033

RIGID TUBE,59 mm OD x 687, 217 mm L

1шт.

14

82036503

HOSE,57.10 mm ID x 90.00 mm

1шт.
