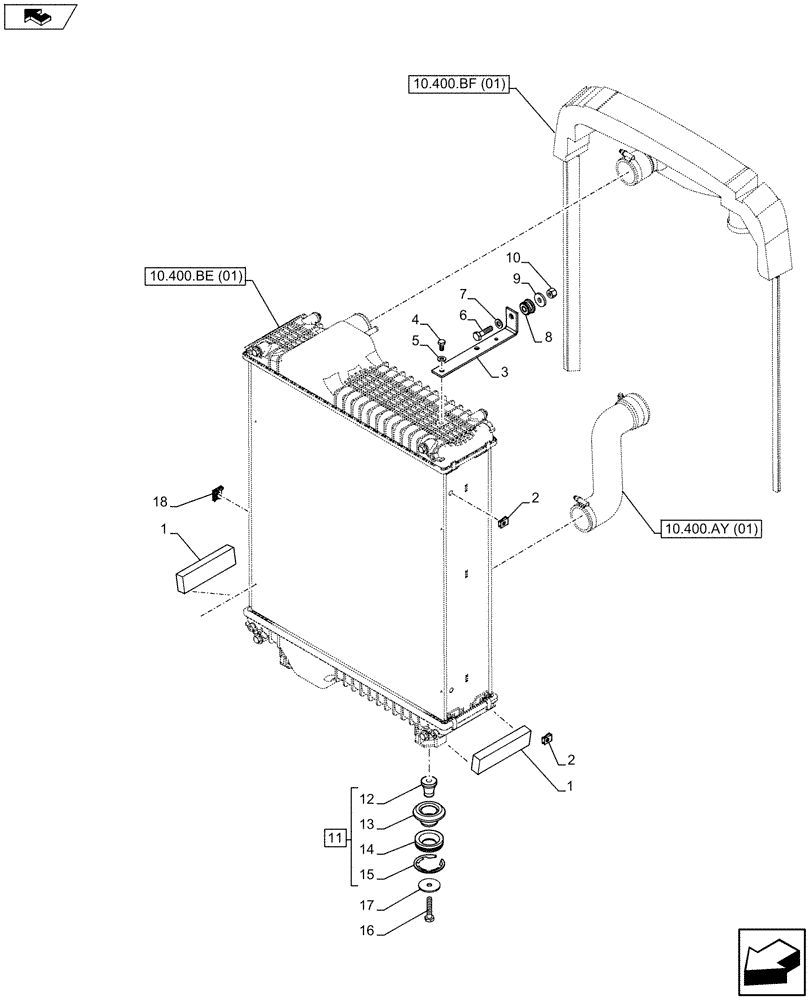

Запчасти Case IH MAXXUM 110 (10.400.BE[02]) - VAR - 330643, 390643 - COOLING SYSTEM LINE 4 CYLINDER (10) - ENGINE

1

82030145

FOAM INSULATION

2шт.

2

14189071

SPRING NUT,M6

2шт.

3

82027541

BRACKET

1шт.

4

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

6

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

7

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

8

82009429

ISOLATOR

1шт.

9

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

10

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

11

82023389

ISOLATOR,67mm OD x 35.5mm L

ASSY, Incl 11 - 15

2шт.

12

82022183

BUSHING,10.2mm ID x 19.8mm OD x 35.5mm L

1шт.

13

NSS

NOT SOLD SEPARAT

Damper, Incl in 11

1шт.

14

82022182

BUSHING,29mm ID x 59mm OD x 15mm L

1шт.

15

82033528

SNAP RING,55mm ID

1шт.

16

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

17

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

18

82004582

CLIP,Square, 25mm

1шт.
