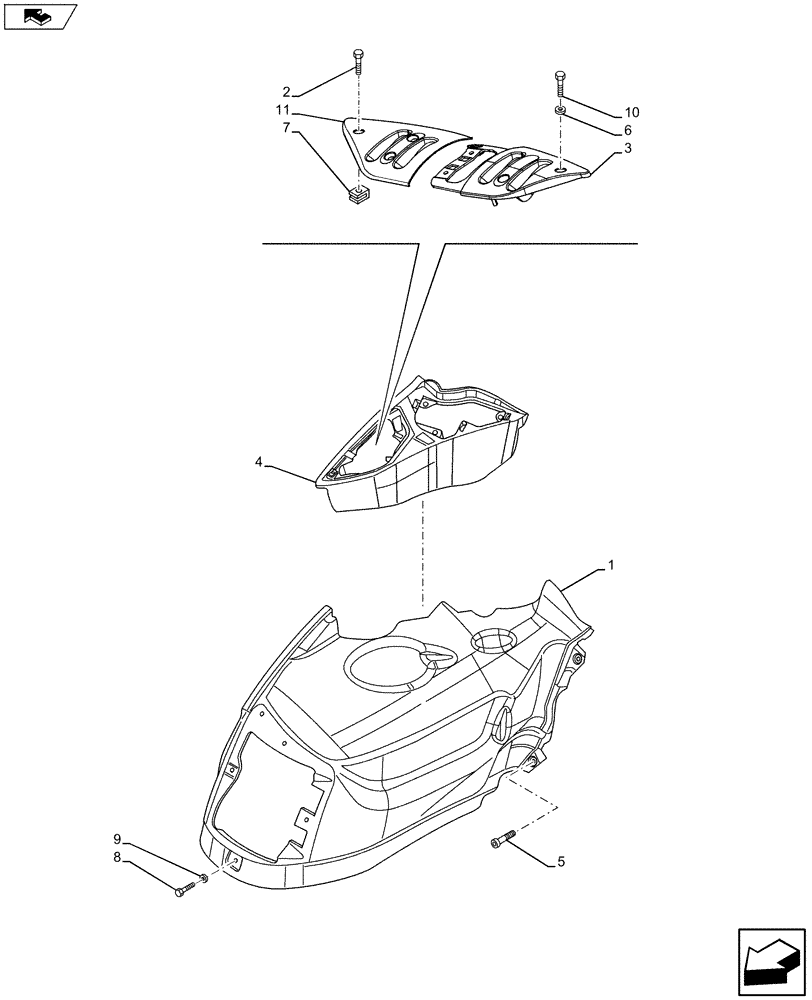

Запчасти Case IH MAXXUM 110 (90.160.BL[06]) - VAR - 334898, 396844 - CAB INTERIOR TRIM, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242733

PANEL

1шт.

2

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

5шт.

3

84190831

BEZEL

Mechanical Control 3

1шт.

4

84212620

PADDING

1шт.

5

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

6

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

7

87567755

SPRING NUT,M5

2шт.

8

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

4шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

10

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

6шт.

11

84190826

BEZEL

Mechanical Control 1 & 2

1шт.
