(90.160.BI[02]) - VAR - 330667, 330668 - CAB INTERIOR TRIM, PILLAR, RIGHT SIDE

Запчасти Case IH MAXXUM 110 (90.160.BI[02]) - VAR - 330667, 330668 - CAB INTERIOR TRIM, PILLAR, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

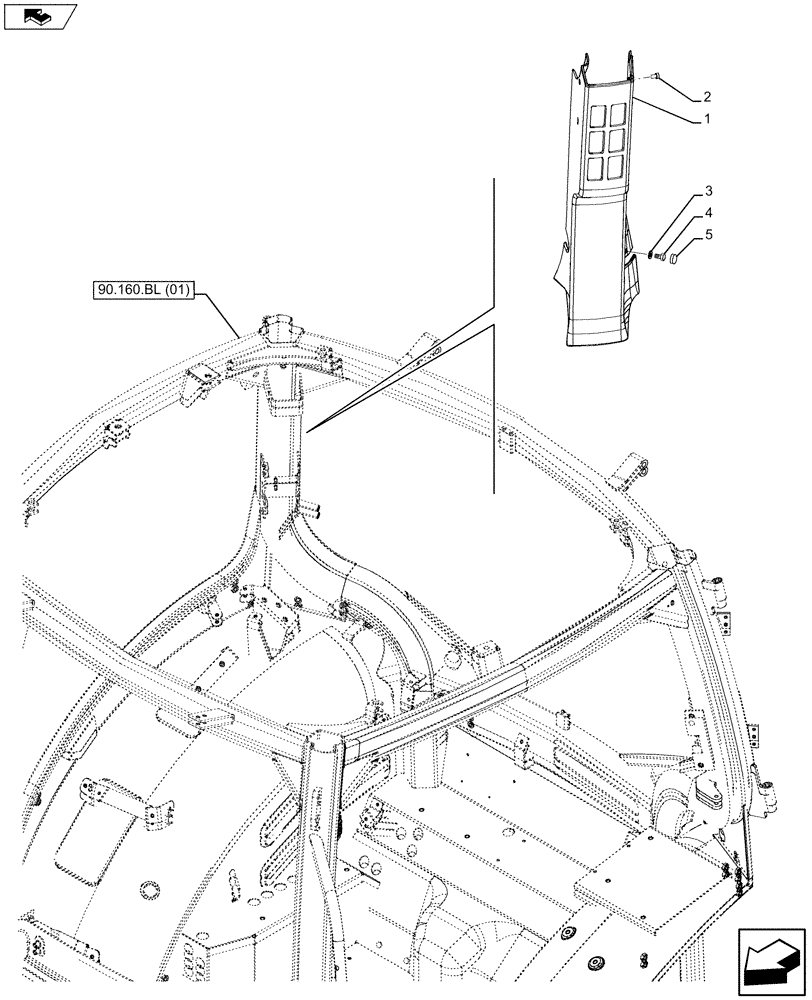

Схема запчастей Case IH MAXXUM 110 - (90.160.BI[02]) - VAR - 330667, 330668 - CAB INTERIOR TRIM, PILLAR, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (01)
3
home
4
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84285943

PADDING

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

7.85 X 19.50

3шт.

3

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

5

82012814

CAP,M10

2шт.
