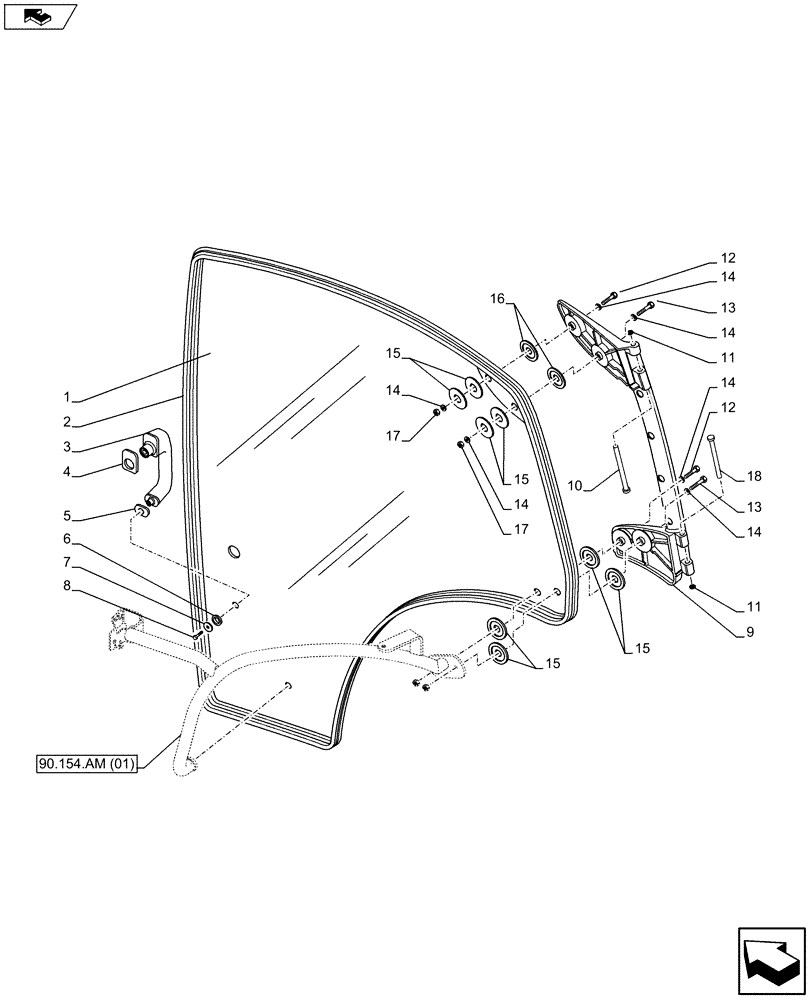

Запчасти Case IH MAXXUM 110 (90.154.AM[01]) - VAR - 331619, 334629, 335937, 331610, 391610 - DOORS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47463484

CAB GLASS

1шт.

2

84275610

WEATHERSTRIP

1шт.

3

82029168

HANDLE

1шт.

4

82029170

GASKET,5-6.5mm Thk, 32mm ID

1шт.

5

82029171

GASKET,5mm Thk, 12mm ID

1шт.

6

82029142

GASKET,16mm ID x 26mm OD x 3mm Thk

1шт.

7

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

8

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

9

87301647

HINGE

1шт.

10

82029159

PIN,9.8mm OD x 129mm L

Upper

1шт.

11

11087971

CIRCLIP,M8

4шт.

12

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

13

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

15

87528178

SEALING WASHER,20mm ID x 60mm OD x 5.5mm Thk

8шт.

16

44995004

WASHER,9mm ID x 60mm OD x 3.4mm Thk

2шт.

17

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

18

82029160

PIN,9.8MM OD X 117.6MM L

Lower

1шт.
