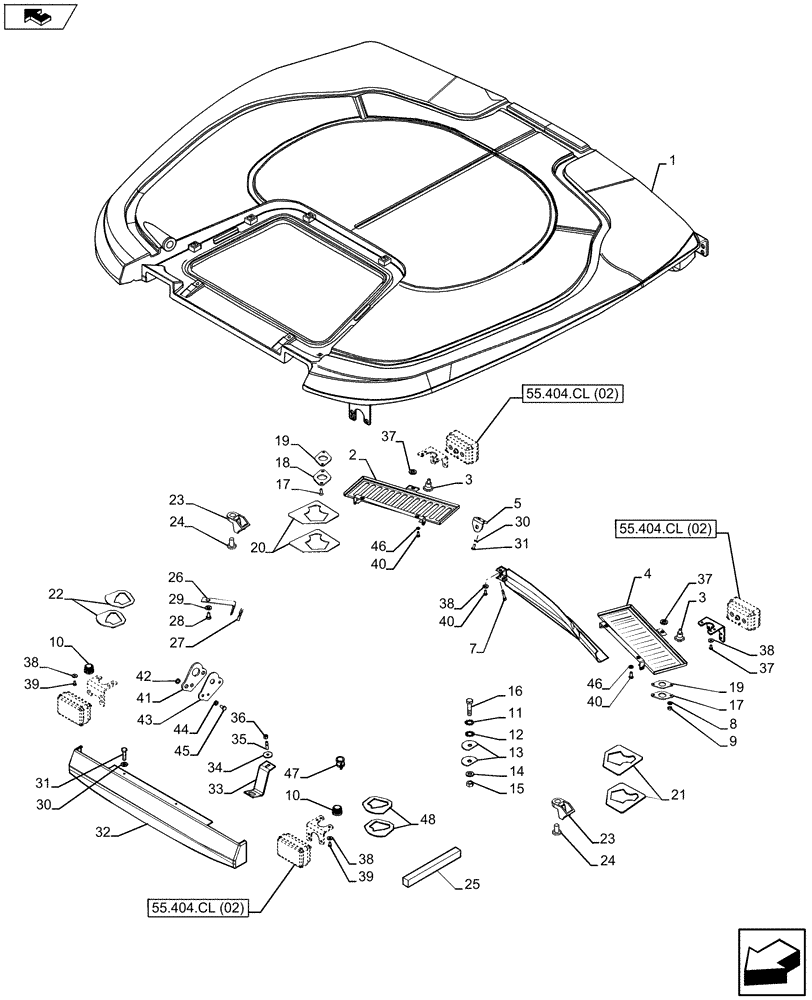

Запчасти Case IH MAXXUM 110 (90.150.BG[12]) - VAR - 334959 - CAB ROOF, NASO LOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47384332

ROOF

1шт.

2

87341182

FILTER COVER

1шт.

3

87337041

KNOB,M6 x 10mm

2шт.

4

87341180

FILTER COVER

1шт.

5

87327093

BRACKET

1шт.

6

84470635

BRACKET

1шт.

7

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

9706755

NUT,M6, Cl 8

2шт.

10

87600545

BUTTON PLUG,M17 x 11.50mm

4шт.

11

81829134

LOCK WASHER,0.464" ID x 0.76" OD x 0.04" Thk

2шт.

12

87547806

RETAINER

2шт.

13

87398511

WASHER,8.2mm ID x 35mm OD x 2mm Thk

4шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

2шт.

16

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

83956457

SCREW,M4 x 10, 4.8

4шт.

18

87546897

PLATE

2шт.

19

87546909

GASKET,2mm Thk

2шт.

20

82038033

GASKET,10mm Thk

2шт.

21

82038034

INSULATION

2шт.

22

82023417

GASKET,10mm Thk, Black

2шт.

23

81864285

CLIP,M6, Black

15шт.

24

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

15шт.

25

87367802

SEALING STRIP

1шт.

26

87327068

BRACKET

1шт.

27

81872135

NUT,Retaining, M4.20

1шт.

28

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

1шт.

29

12638107

SPACER,5.2mm ID x 14mm OD x 1mm Thk

1шт.

30

83901553

LOCK WASHER,M5

8шт.

31

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

8шт.

32

87323767

COVER

1шт.

33

47453714

BRACKET

1шт.

34

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

35

11500321

BOLT,M6 x 18, 8.8, ZND

1шт.

36

12574211

NUT,M6 x 1, Cl 8

1шт.

37

87359165

RETAINER CUP,M6

2шт.

38

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

39

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

40

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

41

47435589

GASKET,5mm Thk

1шт.

42

47407927

SPACER,6.2mm ID x 10mm OD x 1.5mm L

2шт.

43

47435584

PLATE

1шт.

44

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

45

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

46

10516474

LOCK WASHER

1шт.

47

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

48

82025910

GASKET,10 Thk, Black

2шт.
