Запчасти Case IH MAXXUM 110 (90.150.BG[09]) - VAR - 331515 - CAB ROOF, OUTER L/HVW (90) - PLATFORM, CAB, BODYWORK AND DECALS

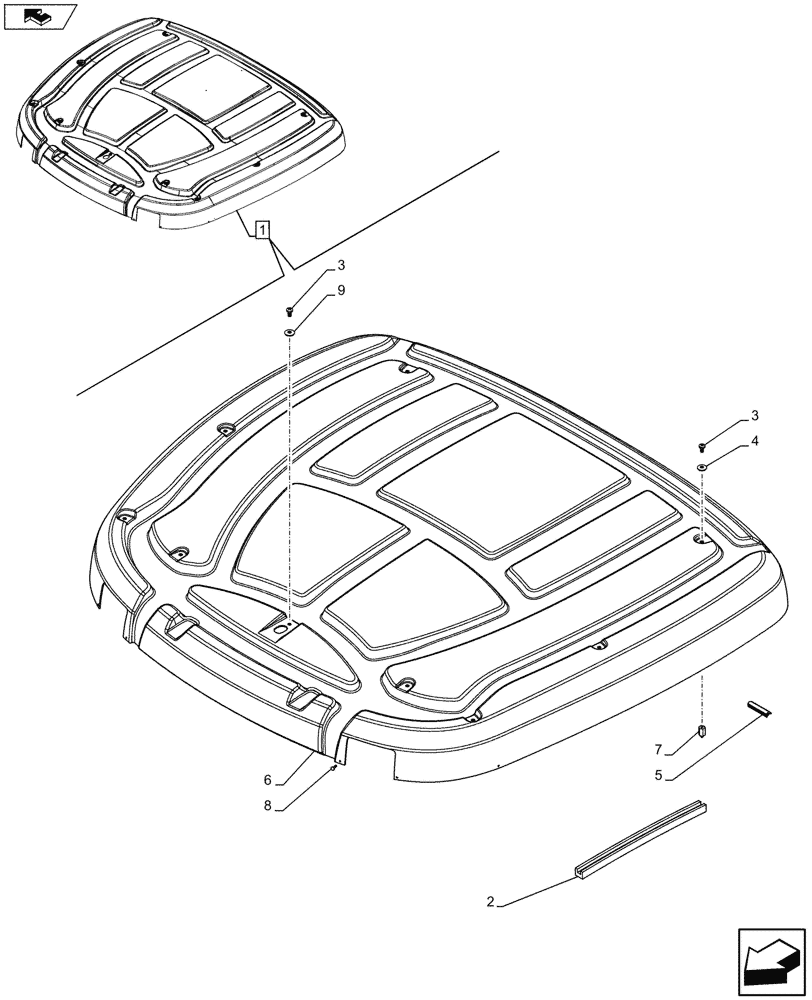

Схема запчастей Case IH MAXXUM 110 - (90.150.BG[09]) - VAR - 331515 - CAB ROOF, OUTER L/HVW (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
8
6
7
3
9
3
4
1
5
2

Артикул

Название

Примечание

Количество

1

84316054

ROOF

ASSY, Incl 2 - 9

1шт.

See also Roof Components in Figure 90.150.BG (10)

1шт.

2

82028318

SEAL

1шт.

3

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

8шт.

5

82034370

SEAL

1шт.

6

84316054

ROOF

1шт.

7

82034114

SPACER,M6 x 25mm L

8шт.

8

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

9шт.

9

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

Выбрано товаров: 10
