(90.150.BG[05]) - VAR - 331520 - CAB ROOF, OUTER

Запчасти Case IH MAXXUM 110 (90.150.BG[05]) - VAR - 331520 - CAB ROOF, OUTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

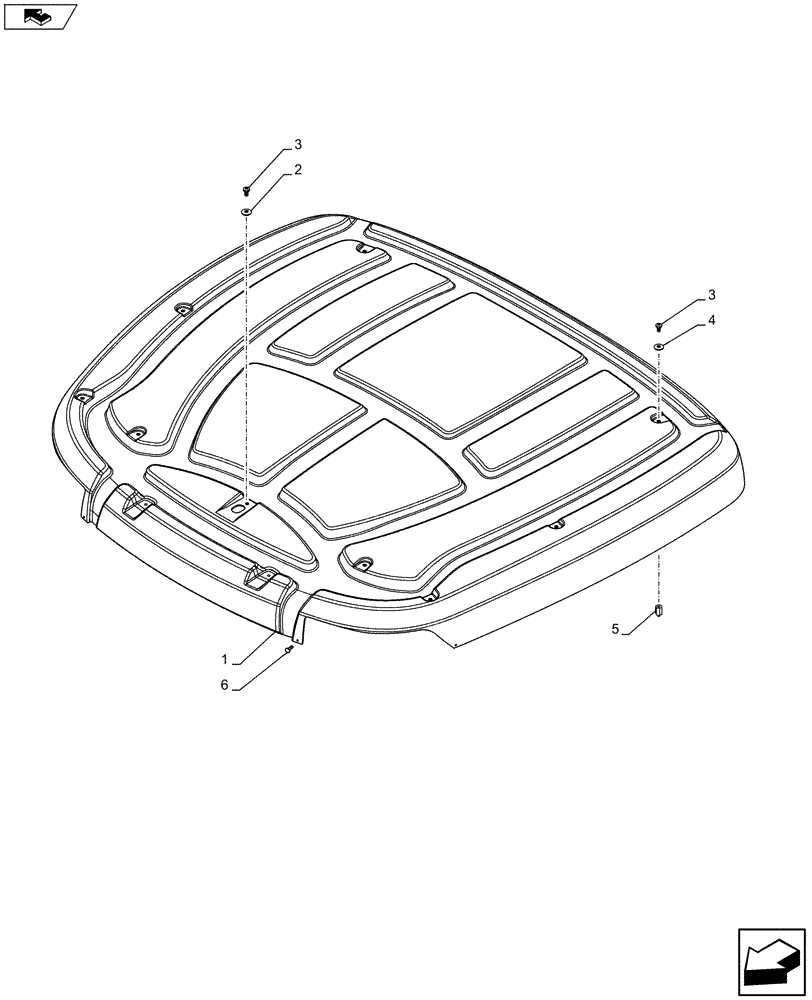

Схема запчастей Case IH MAXXUM 110 - (90.150.BG[05]) - VAR - 331520 - CAB ROOF, OUTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
6
3
5
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84276380

ROOF

1шт.

2

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

3

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

SEAL WASHER

8шт.

5

82034114

SPACER,M6 x 25mm L

7шт.

6

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

8шт.

Выбрано товаров: 6
