Запчасти Case IH MAXXUM 110 (90.150.AJ[01]) - VAR - 331659, 335077, 338928, 391658 - CAB SUPPORT, WITHOUT CAB SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

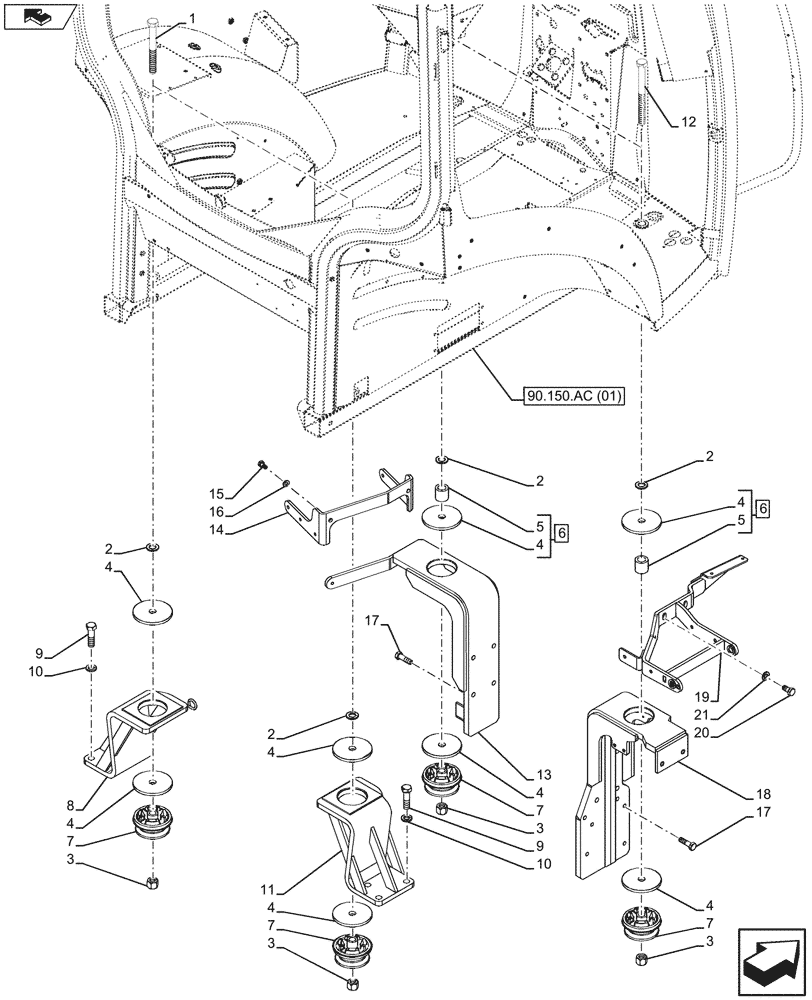

Схема запчастей Case IH MAXXUM 110 - (90.150.AJ[01]) - VAR - 331659, 335077, 338928, 391658 - CAB SUPPORT, WITHOUT CAB SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
3
7
15
3
2
4
2
7
14
5
4
6
home
9
16
21
4
11
5
3
1
4
12
6
9
3
4
2
10
7
4
4
20
17
8
13
18
10
17
19
7
4
2

Артикул

Название

Примечание

Количество

1

15990721

BOLT,Hex, M20 x 1.5 x 180mm, Cl 8.8

2шт.

2

14497101

WASHER,M20 x 37 x 3

4шт.

3

12575121

NUT,M20 x 1.5, Cl 10

4шт.

4

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

8шт.

5

NSS

NOT SOLD SEPARAT

Bushing, Incl in 6

2шт.

6

87301788

SPACER

ASSY, Incl 4 (Qty 1), 5

2шт.

7

83983548

ISOLATOR,120mm OD x 64mm L

4шт.

8

84471136

SUPPORT

Rear LH

1шт.

9

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

8шт.

10

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

11

84471137

SUPPORT

Rear RH

1шт.

12

15991421

BOLT,Hex, M20 x 1.5 x 220mm

2шт.

13

47374344

SUPPORT

Front LH

1шт.

14

84469510

SUPPORT

Front LH to Steps

1шт.

15

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

16

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

17

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

8шт.

18

47436206

SUPPORT

Front RH

1шт.

19

47410624

SUPPORT

Front RH to Steps

1шт.

20

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

21

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

Выбрано товаров: 21
