(90.124.AP[01]) - VAR - 333709 - DELUXE SUSPENSION SEAT

Запчасти Case IH MAXXUM 110 (90.124.AP[01]) - VAR - 333709 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

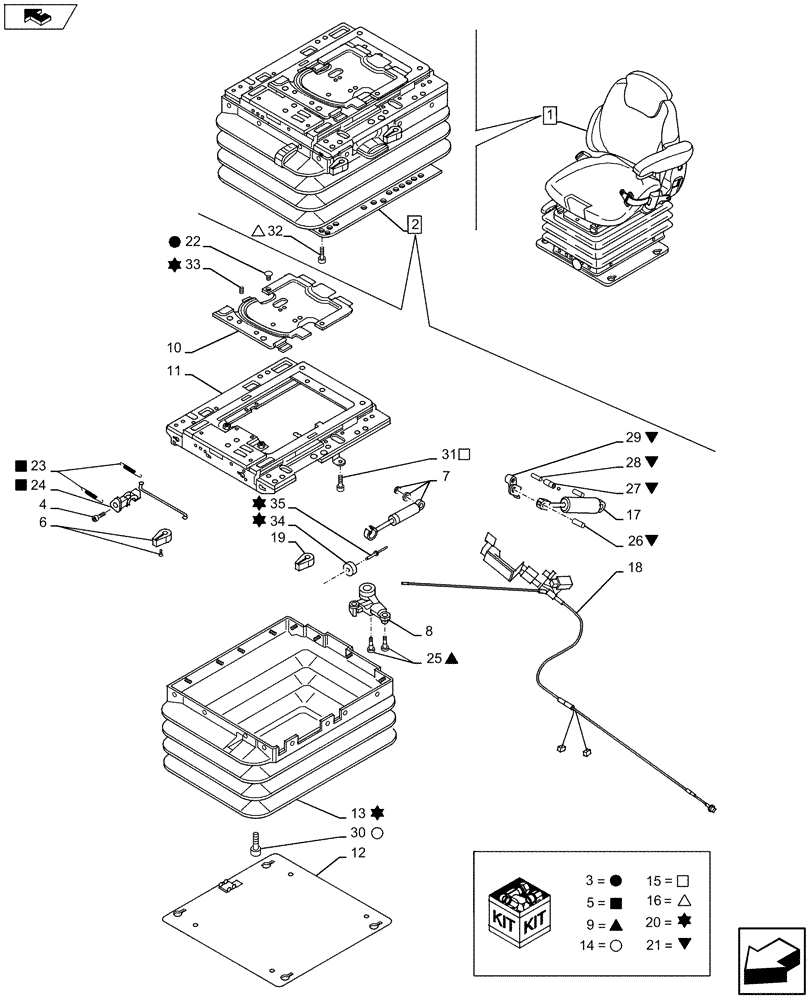

Схема запчастей Case IH MAXXUM 110 - (90.124.AP[01]) - VAR - 333709 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
21
19
7
24
14
15
5
34
9
home
5
10
33
11
6
20
29
35
16
32
3
20
21
20
16
23
2
25
13
21
1
12
17
28
14
5
31
26
21
8
3
21
15
20
9
27
20
30
18
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY, Incl 2 - 35

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl in 1, Incl 16

1шт.

3

84191006

REPAIR KIT

1шт.

4

84190989

ADJUSTER

ASSY, Incl 5, 6

1шт.

5

84191015

REPAIR KIT

1шт.

6

1472163

HANDLE

1шт.

7

84190985

SHOCK ABSORBER

1шт.

8

84190983

SHOCK ABSORBER

ASSY, Incl 7, 9, 20

1шт.

9

84191002

REPAIR KIT

1шт.

10

84190947

COVER

ASSY, Incl 3, 20

1шт.

11

84190966

PLATE

ASSY, Incl 4, 15

1шт.

12

84191021

PLATE

1шт.

13

84190978

BELLOWS

ASSY, Incl 14, 20

1шт.

14

84191003

REPAIR KIT

1шт.

15

84191010

REPAIR KIT

1шт.

16

84190998

SERVICE KIT

1шт.

17

84191071

KIT

ASSY, Incl 21

1шт.

18

84190970

WIRE HARNESS

1шт.

19

82035123

HANDLE

1шт.

20

84190975

REPAIR KIT

1шт.

21

84191020

REPAIR KIT

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

23

NSS

NOT SOLD SEPARAT

Spring, Incl in 5

1шт.

24

NSS

NOT SOLD SEPARAT

Screw, Incl in 5

1шт.

25

NSS

NOT SOLD SEPARAT

Screw, Incl in 9

1шт.

26

NSS

NOT SOLD SEPARAT

Pin, Incl in 21

1шт.

27

NSS

NOT SOLD SEPARAT

Pin, Incl in 21

1шт.

28

NSS

NOT SOLD SEPARAT

Pin, Incl in 21

1шт.

29

NSS

NOT SOLD SEPARAT

Lever, Incl in 21

1шт.

30

NSS

NOT SOLD SEPARAT

Screw, Incl in 14

1шт.

31

NSS

NOT SOLD SEPARAT

Screw, Incl in 15

1шт.

32

NSS

NOT SOLD SEPARAT

Screw, Incl in 16

1шт.

33

NSS

NOT SOLD SEPARAT

Pin, Dowel, Incl in 20

1шт.

34

NSS

NOT SOLD SEPARAT

Bushing, Incl in 20

1шт.

35

NSS

NOT SOLD SEPARAT

Rivet, Incl in 20

1шт.
