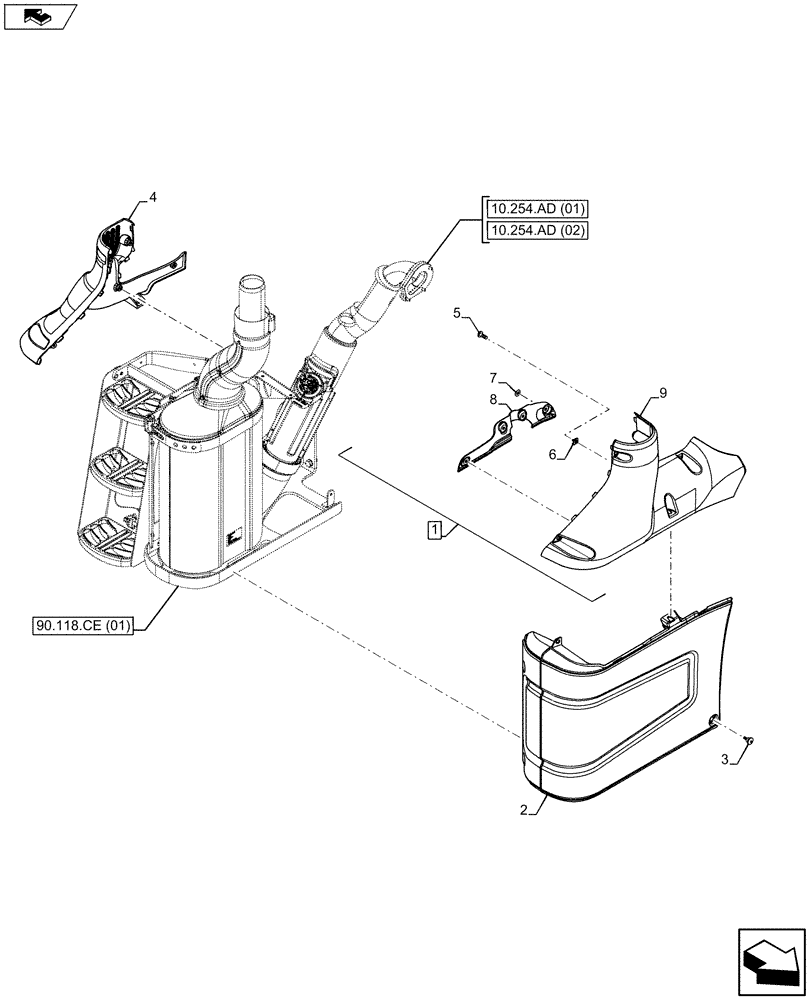

Запчасти Case IH MAXXUM 110 (10.254.AD[04]) - VAR - 743702 - EXHAUST SYSTEM PIPE, COVER (10) - ENGINE

1

84511155

PADDING

Upper Front ASSY, Incl 6 - 9

1шт.

2

84484410

PADDING

Lower Front

1шт.

3

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

5шт.

4

84473421

TRIM PANEL

Upper Rear

1шт.

5

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

5шт.

6

14189071

SPRING NUT,M6

5шт.

7

14228374

COVER PLATE

5шт.

8

84511128

PADDING

1шт.

9

NSS

NOT SOLD SEPARAT

Padding, Incl in 1

1шт.
