(90.124.AK[01]) - VAR - 333709 - DELUXE SUSPENSION SEAT

Запчасти Case IH MAXXUM 110 (90.124.AK[01]) - VAR - 333709 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

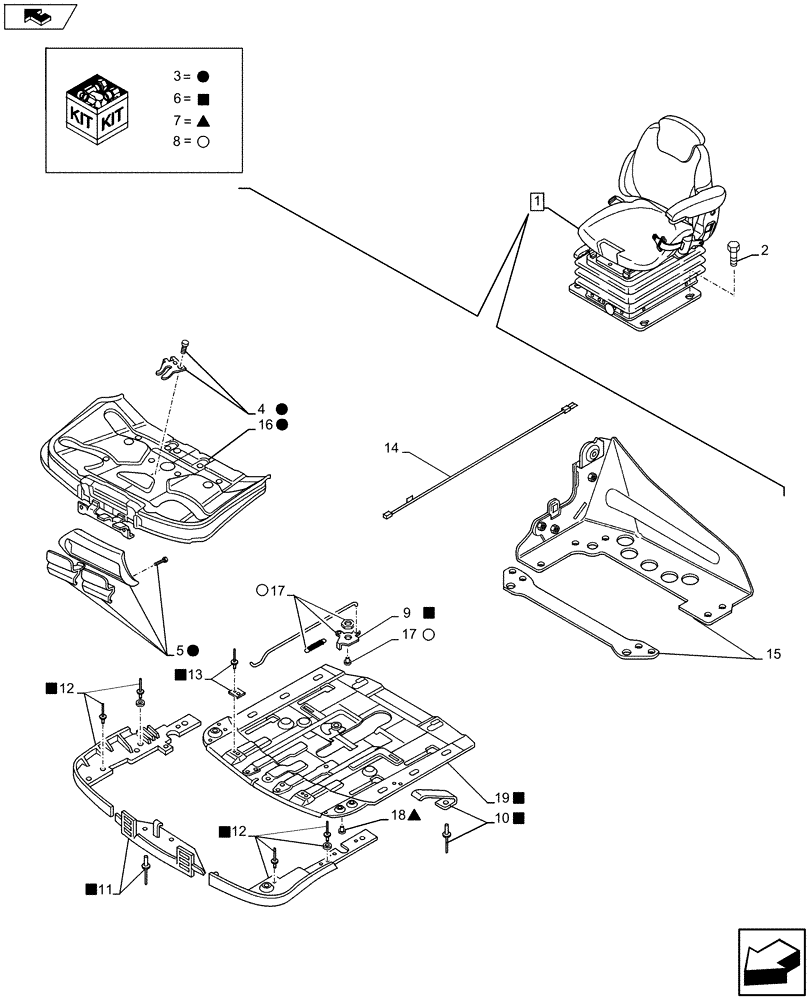

Схема запчастей Case IH MAXXUM 110 - (90.124.AK[01]) - VAR - 333709 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
home
3
8
9
12
6
17
16
5
18
13
7
8
2
6
6
14
10
4
6
11
3
8
6
19
6
1
6
15
3
7
3
12
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

ASSY, Incl 2 - 19

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M8 X 20 RND WSHR-HD TORX 8.8 POL

4шт.

3

84191153

ADJUSTER

ASSY, Incl 4, 5, 16

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

ASSY, Incl 9 - 13, 19

1шт.

7

84191202

SET OF PARTS

ASSY, Incl 18, 19

1шт.

8

84191203

CONTROL LEVER

ASSY, Incl 17

1шт.

9

345775A1

LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

84191178

SET OF PARTS

1шт.

14

84191190

WIRE HARNESS

1шт.

15

84191195

SUPPORT

1шт.

16

NSS

NOT SOLD SEPARAT

Seat Angle ADJ., Incl in 3

1шт.

17

NSS

NOT SOLD SEPARAT

Service Part, Incl in 8

1шт.

18

NSS

NOT SOLD SEPARAT

Service Part, Incl in 7

1шт.

19

NSS

NOT SOLD SEPARAT

Depth Adjustment, Incl in 7

1шт.
