(90.124.AE[03]) - VAR - 390709 - SUSPENSION SEAT, W/ GARU

Запчасти Case IH MAXXUM 110 (90.124.AE[03]) - VAR - 390709 - SUSPENSION SEAT, W/ GARU (90) - PLATFORM, CAB, BODYWORK AND DECALS

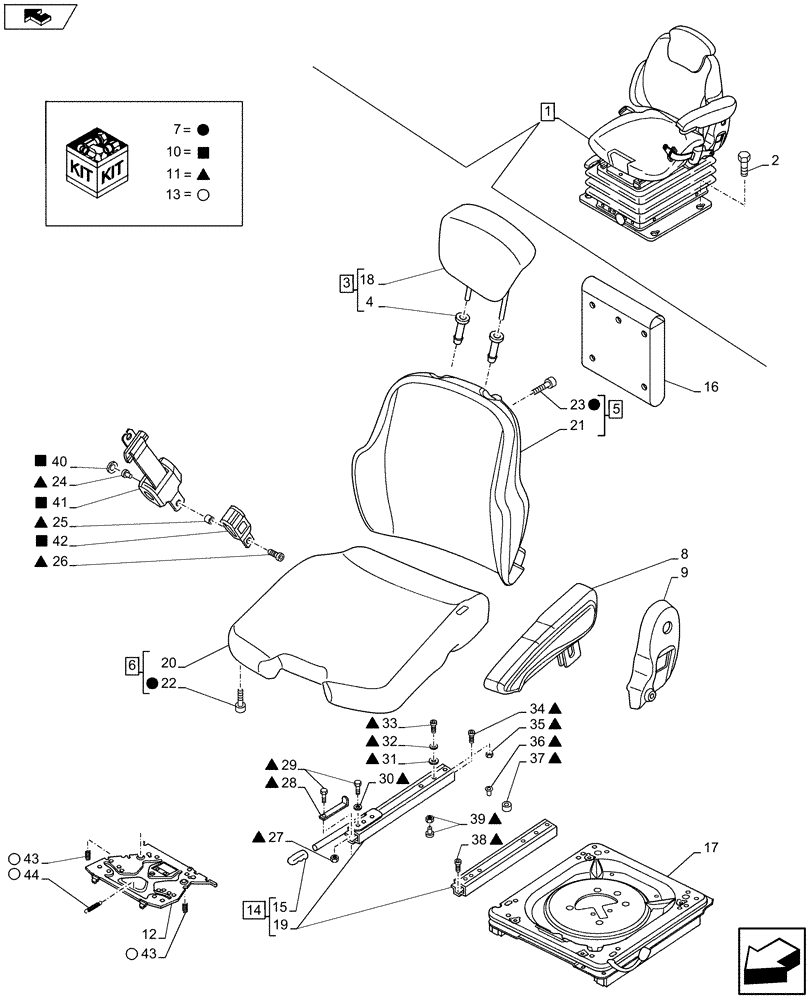

Схема запчастей Case IH MAXXUM 110 - (90.124.AE[03]) - VAR - 390709 - SUSPENSION SEAT, W/ GARU (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
13
11
6
30
22
11
39
10
26
44
11
12
8
19
11
21
3
18
home
11
27
32
7
1
11
13
36
9
4
16
11
25
40
23
29
11
11
31
20
14
11
42
38
15
7
7
11
11
24
11
11
10
43
10
28
13
11
11
35
37
34
43
10
11
41
17
13
2
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486984

SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

ASSY, Incl 4, 19

1шт.

4

84191112

GUIDE

1шт.

5

84172430

SEAT BACK

ASSY, Incl 7, 21

1шт.

6

84191096

SEAT CUSHION,Fabric Confetti Wheat

ASSY, Incl 7, 20

1шт.

7

84191200

SET OF PARTS

ASSY, Incl 22, 23

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

ASSY, 40 - 42

1шт.

11

84191194

MOUNTING PARTS

ASSY, Incl 24 - 39

1шт.

12

84191141

PLATE

ASSY, Incl 13

1шт.

13

84191201

SET OF PARTS

ASSY, Incl 43, 44

1шт.

14

84191191

REPAIR KIT

ASSY, Incl 15, 18

1шт.

15

9971715

HANDLE

1шт.

16

47124555

BRIEF CASE

1шт.

17

84191192

SEAT SUPPORT

1шт.

18

NSS

NOT SOLD SEPARAT

Incl in 3

1шт.

19

NSS

NOT SOLD SEPARAT

Incl in 14

1шт.

20

NSS

NOT SOLD SEPARAT

Incl in 6

1шт.

21

NSS

NOT SOLD SEPARAT

Incl in 5

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Incl in 7

1шт.

23

NSS

NOT SOLD SEPARAT

Screw, Incl in 7

1шт.

24

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

25

NSS

NOT SOLD SEPARAT

Spacer, Incl in 11

1шт.

26

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

27

NSS

NOT SOLD SEPARAT

Nut, Incl in

1шт.

28

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

29

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

30

NSS

NOT SOLD SEPARAT

Washer, Incl in 11

1шт.

31

NSS

NOT SOLD SEPARAT

Washer, Incl in 12

1шт.

32

NSS

NOT SOLD SEPARAT

Washer, Incl in 13

1шт.

33

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

34

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

35

NSS

NOT SOLD SEPARAT

Nut, Incl in

1шт.

36

NSS

NOT SOLD SEPARAT

Spacer, Incl in 11

1шт.

37

NSS

NOT SOLD SEPARAT

Spacer, Incl in 11

1шт.

38

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

39

NSS

NOT SOLD SEPARAT

Bolt, Incl in 11

1шт.

40

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

41

NSS

NOT SOLD SEPARAT

Seat Belt, Incl in 10

1шт.

42

NSS

NOT SOLD SEPARAT

Seat Belt, Incl in 10

1шт.

43

NSS

NOT SOLD SEPARAT

Pin, Dowel, Incl in 13

1шт.

44

NSS

NOT SOLD SEPARAT

Spring, Incl in 14

1шт.
