(90.124.AE[02]) - VAR - 332709 - DELUXE SUSPENSION SEAT, HEATED

Запчасти Case IH MAXXUM 110 (90.124.AE[02]) - VAR - 332709 - DELUXE SUSPENSION SEAT, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

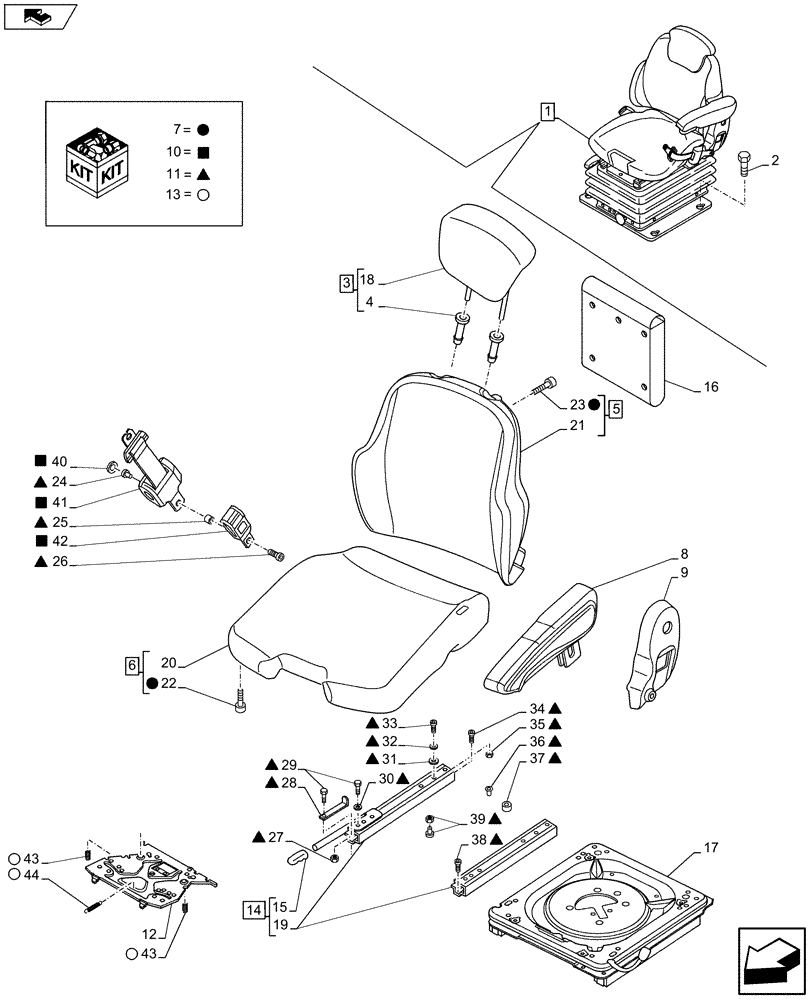

Схема запчастей Case IH MAXXUM 110 - (90.124.AE[02]) - VAR - 332709 - DELUXE SUSPENSION SEAT, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS
42
39
11
13
15
11
9
8
23
10
13
11
11
1
13
7
44
25
11
2
11
18
34
10
10
11
11
22
40
11
38
12
28
11
36
6
14
11
11
35
29
3
4
11
32
27
16
30
10
11
11
21
43
31
43
11
24
33
41
11
7
26
home
13
7
37
19
17
5
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84171102

SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M8 X 20 RND WSHR-HD TORX 8.8 POL

4шт.

3

84191100

SEAT HEADREST

ASSY, Incl. 4, 19

1шт.

4

84191112

GUIDE

1шт.

5

84191204

BACKREST

ASSY, Incl. 7, 21

1шт.

6

84191205

SEAT CUSHION

ASSY, Incl. 7, 20

1шт.

7

84191200

SET OF PARTS

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84191194

MOUNTING PARTS

1шт.

12

84191141

PLATE

1шт.

13

84191201

SET OF PARTS

1шт.

14

84191191

REPAIR KIT

ASSY, Incl. 15, 18

1шт.

15

9971715

HANDLE

1шт.

16

47124555

BRIEF CASE

1шт.

17

82039448

PLATE

1шт.

18

NSS

NOT SOLD SEPARAT

Incl. In 3

1шт.

19

NSS

NOT SOLD SEPARAT

Incl. In 14

1шт.

20

NSS

NOT SOLD SEPARAT

Incl. In 6

1шт.

21

NSS

NOT SOLD SEPARAT

Incl. In 5

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Incl. In 7

1шт.

23

NSS

NOT SOLD SEPARAT

Screw, Incl. In 7

1шт.

24

NSS

NOT SOLD SEPARAT

Screw, Incl. In 11

1шт.

25

NSS

NOT SOLD SEPARAT

Spacer, Incl. In 11

1шт.

26

NSS

NOT SOLD SEPARAT

Screw, Incl. In 11

1шт.

27

NSS

NOT SOLD SEPARAT

Nut, Incl. In

1шт.

28

NSS

NOT SOLD SEPARAT

Bracket, Incl. In 11

1шт.

29

NSS

NOT SOLD SEPARAT

Screw, Incl. In 11

1шт.

30

NSS

NOT SOLD SEPARAT

Washer, Incl. In 11

1шт.

31

NSS

NOT SOLD SEPARAT

Washer, Incl. In 12

1шт.

32

NSS

NOT SOLD SEPARAT

Washer, Incl. In 13

1шт.

33

NSS

NOT SOLD SEPARAT

Screw, Incl. In 11

1шт.

34

NSS

NOT SOLD SEPARAT

Screw, Incl. In 11

1шт.

35

NSS

NOT SOLD SEPARAT

Nut, Incl. In

1шт.

36

NSS

NOT SOLD SEPARAT

Spacer, Incl. In 11

1шт.

37

NSS

NOT SOLD SEPARAT

Spacer, Incl. In 11

1шт.

38

NSS

NOT SOLD SEPARAT

Screw, Incl. In 11

1шт.

39

NSS

NOT SOLD SEPARAT

Bolt, Incl. In 11

1шт.

40

NSS

NOT SOLD SEPARAT

Plug, Incl. In 10

1шт.

41

NSS

NOT SOLD SEPARAT

Seat Belt, Incl. In 10

1шт.

42

NSS

NOT SOLD SEPARAT

Seat Belt, Incl. In 10

1шт.

43

NSS

NOT SOLD SEPARAT

Pin, Dowel, Incl. In 13

1шт.

44

NSS

NOT SOLD SEPARAT

Spring, Incl. In 14

1шт.
