(90.116.BA[01]) - VAR - 333884, 334884, 335884 - DYNAMIC FRONT FENDER, SUPPORT

Запчасти Case IH MAXXUM 110 (90.116.BA[01]) - VAR - 333884, 334884, 335884 - DYNAMIC FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

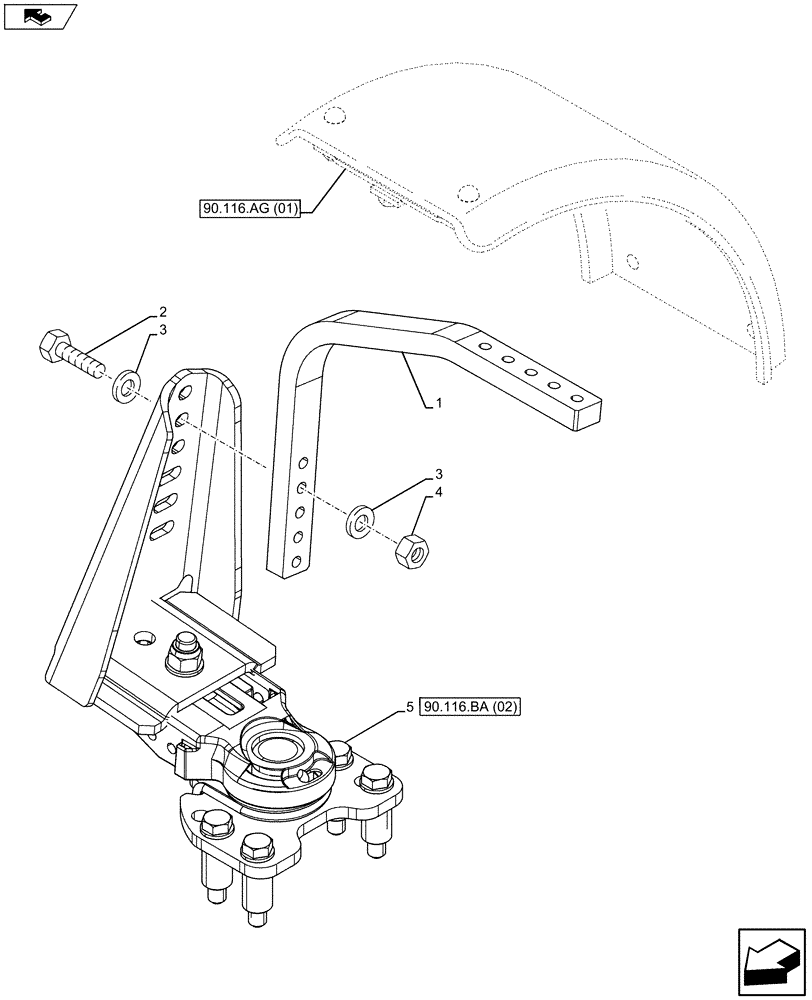

Схема запчастей Case IH MAXXUM 110 - (90.116.BA[01]) - VAR - 333884, 334884, 335884 - DYNAMIC FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
90.116.ba (02)
3
1
3
home
4
2
90.116.ag (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82027913

SUPPORT

2шт.

2

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

4

12164911

NUT,M12 x 1.75, Cl 8

1шт.

5

47444870

HUB

RH, Assy

1шт.

5

47444867

HUB

LH, Assy

1шт.
