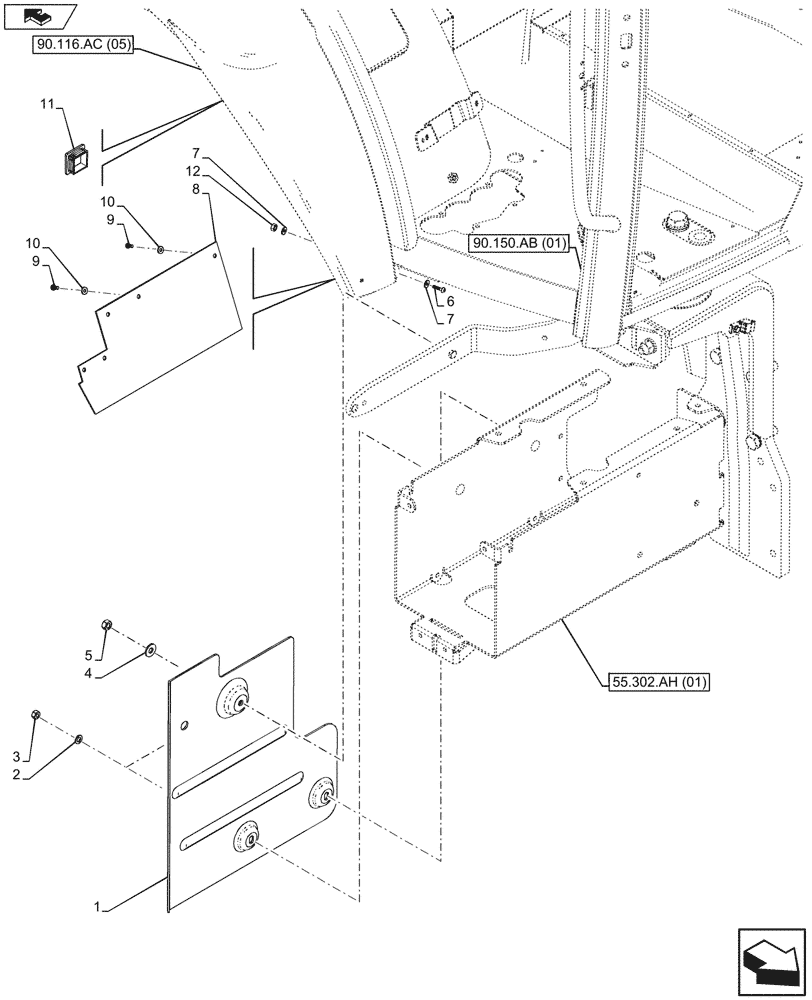

Запчасти Case IH MAXXUM 110 (90.116.AG[05]) - VAR - 391153, 743708, 743777, 338122, 338202, 338206 - MUDGUARD, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84547297

GUARD

RH

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

14047317

NUT,M8 x 1.25

1шт.

4

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

3шт.

5

16043480

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

3шт.

6

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

7

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

8

47409713

RUBBER PAD

2шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

10

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

11

82033880

PLUG,70mm ID

2шт.

12

9706755

NUT,M6, Cl 8

2шт.
