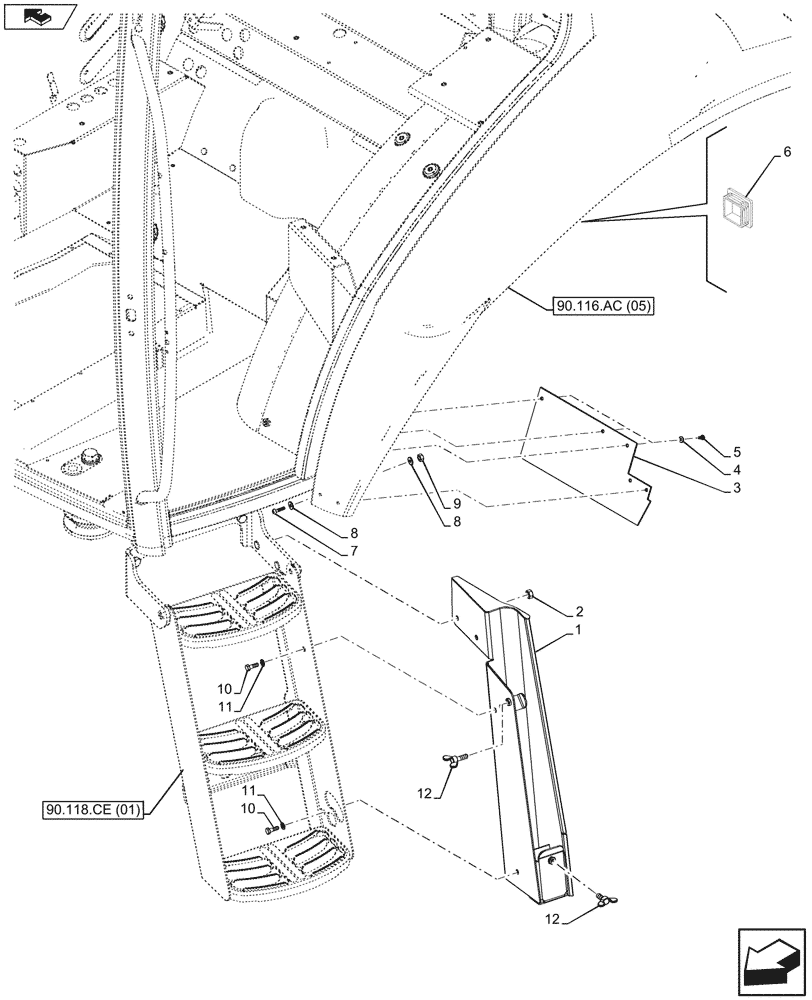

Запчасти Case IH MAXXUM 110 (90.116.AG[04]) - VAR - 391153, 743708, 743777, 338122, 338202, 338206 - MUDGUARD, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47361666

GUARD

LH

1шт.

2

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

3

47409713

RUBBER PAD

1шт.

4

12647104

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

6

82033880

PLUG,70mm ID

1шт.

7

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

8

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

15896211

NUT,M6, Cl 8

1шт.

10

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

84492240

SCREW,Wing, M10 x 30mm

2шт.
