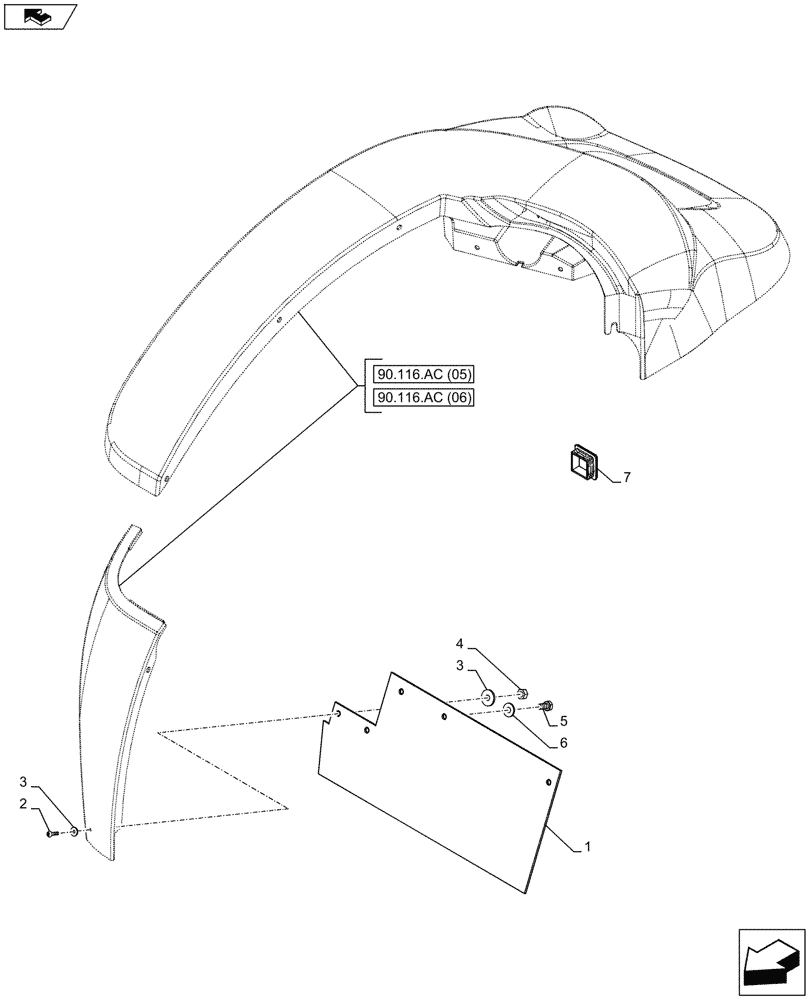

Запчасти Case IH MAXXUM 110 (90.116.AC[14]) - VAR - 338122, 338201, 338202, 391153, 743777 - REAR FENDER, MUDGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47409713

RUBBER PAD

LH & RH

2шт.

2

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

3

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

4

15896211

NUT,M6, Cl 8

LH

1шт.

4

9706755

NUT,M6, Cl 8

RH

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

LH

3шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

RH

3шт.

6

12647104

WASHER,8.15mm ID x 20mm OD x 3mm Thk

LH

3шт.

6

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

RH

3шт.

7

82033880

PLUG,70mm ID

Square, 70mm x 70mm

2шт.

Only with Tow Hook, Var. 338122 (743777) or Var. 338202 (391153)

1шт.
