(90.116.AC[10]) - VAR - 338204, 338206, 743707, 743708 - WIDE REAR FENDERS, MUDGUARD

Запчасти Case IH MAXXUM 110 (90.116.AC[10]) - VAR - 338204, 338206, 743707, 743708 - WIDE REAR FENDERS, MUDGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

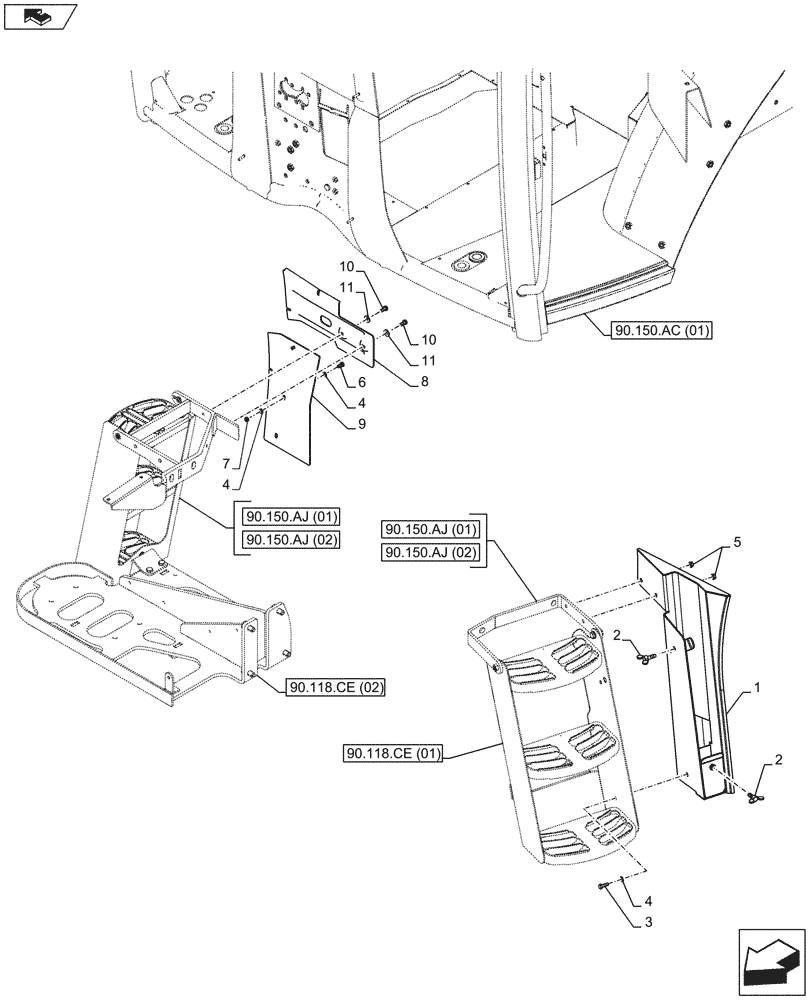

Схема запчастей Case IH MAXXUM 110 - (90.116.AC[10]) - VAR - 338204, 338206, 743707, 743708 - WIDE REAR FENDERS, MUDGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.118.ce (02)
4
11
2
11
10
4
1
10
3
home
4
2
9
8
5
7
6
90.150.aj (01)
90.150.aj (01)
90.150.ac (01)
90.150.aj (02)
90.150.aj (02)
90.118.ce (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47377386

GUARD

LH

1шт.

2

84492240

SCREW,Wing, M10 x 30mm

2шт.

3

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

2шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

16043280

BOLT,Hex, M8 x 1.25 x 16mm, Full Thd

2шт.

7

14047317

NUT,M8 x 1.25

3шт.

8

47404304

GUARD

RH, Upper

1шт.

9

47404300

GUARD

RH, Lower

1шт.

10

16043480

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

11

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

2шт.
