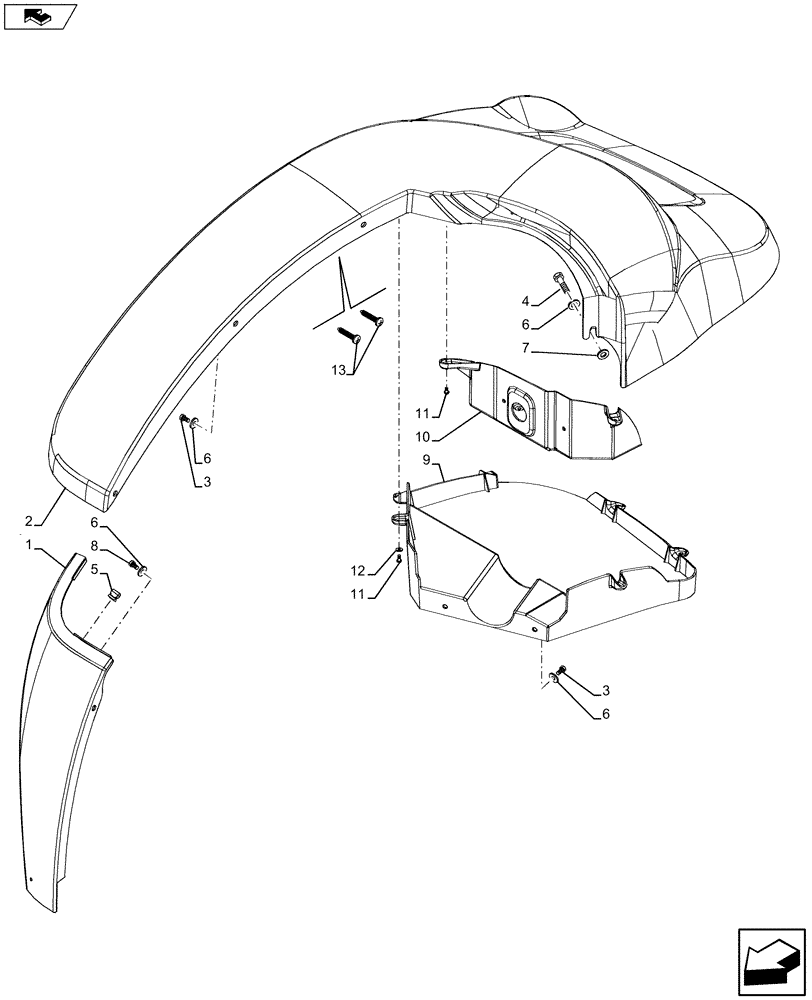

Запчасти Case IH MAXXUM 110 (90.116.AC[06]) - VAR - 338122, 338201, 338202, 391153, 743777 - REAR FENDER, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82038500

REAR FENDER

RH

1шт.

2

87554854

REAR FENDER

RH

1шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

4

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

5

82010838

SPRING CLIP,0.5mm Thk

3шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

7шт.

7

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

1шт.

8

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

9

87304235

SUPPORT

RH

1шт.

10

84511195

COVER

RH, Lamp

1шт.

11

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

10шт.

12

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

6шт.

13

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.
