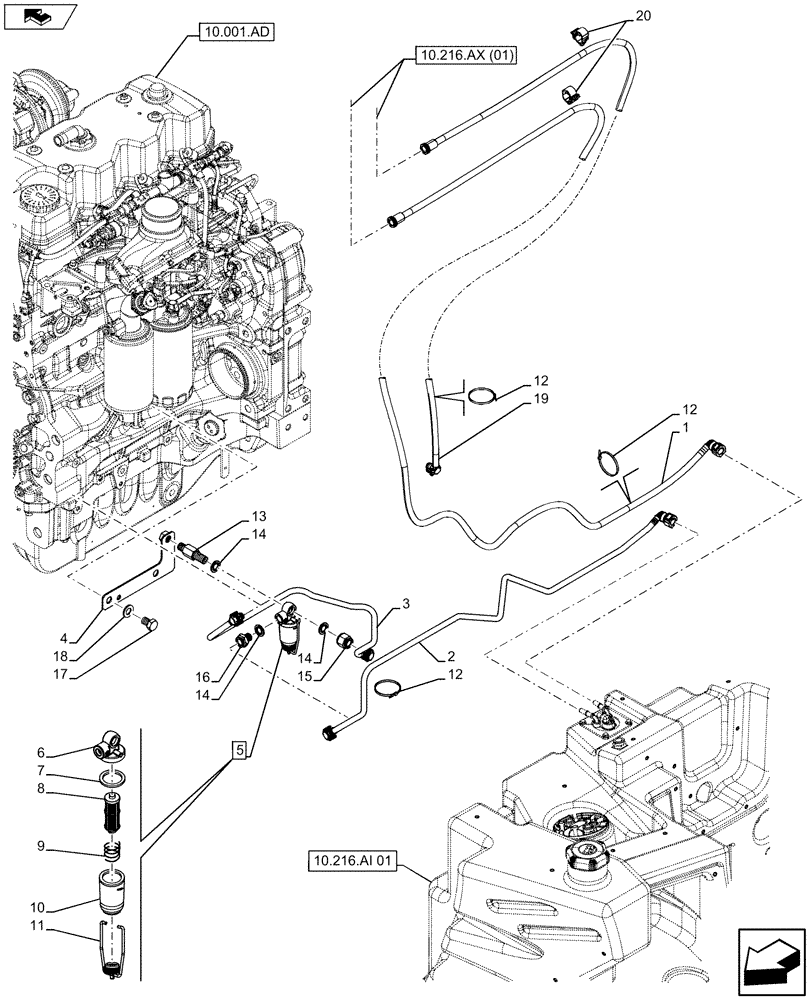

Запчасти Case IH MAXXUM 110 (10.216.AY) - VAR - 331170 - FUEL COOLER LINE (10) - ENGINE

1

47363853

FUEL TUBE

1925mm

1шт.

2

47363849

FUEL TUBE

847mm

1шт.

3

84546890

FUEL TUBE

628mm

1шт.

4

84306145

BRACKET

1шт.

5

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

ASSY, Incl 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 5

1шт.

7

84328596

SEAL

1шт.

8

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

9

84328599

SPRING

1шт.

10

84328600

FILTER BOWL,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

11

NSS

NOT SOLD SEPARAT

Clamp, Incl in 5

1шт.

12

9994404

HOSE CLIP

3шт.

13

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

M12 x 1.75

1шт.

14

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

D=14mm

3шт.

15

87585673

HYD CONNECTOR

M14 x 1.5

1шт.

16

4893833

HYD CONNECTOR

M14 x 1.5

1шт.

17

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

19

84520378

TUBE

1035mm

1шт.

20

84279241

CLAMP

2шт.
