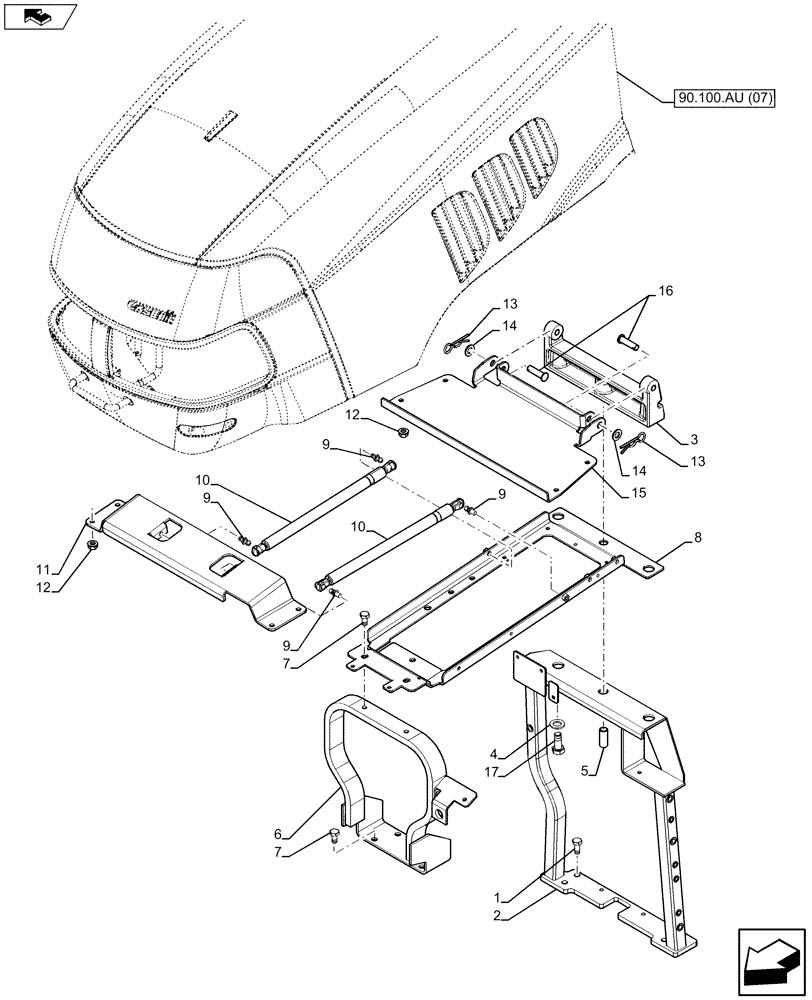

Запчасти Case IH MAXXUM 110 (90.100.AU[04]) - VAR - 332285, 334959, 335789, 335791, 392500 - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

2

84424130

SUPPORT

1шт.

3

87353681

HINGE

1шт.

4

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

5

82006056

PIN,16mm OD x 40mm L

1шт.

6

87631496

SUPPORT

1шт.

7

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

6шт.

8

84468875

SUPPORT

1шт.

9

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

10

82032866

GAS STRUT

2шт.

11

87612108

PANEL

1шт.

12

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

13

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

14

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

15

87612102

PANEL

1шт.

16

87353680

PIN,12.2mm OD x 44mm L

2шт.

17

11127521

BOLT,Hex, M16 x 35, 8.8

2шт.
