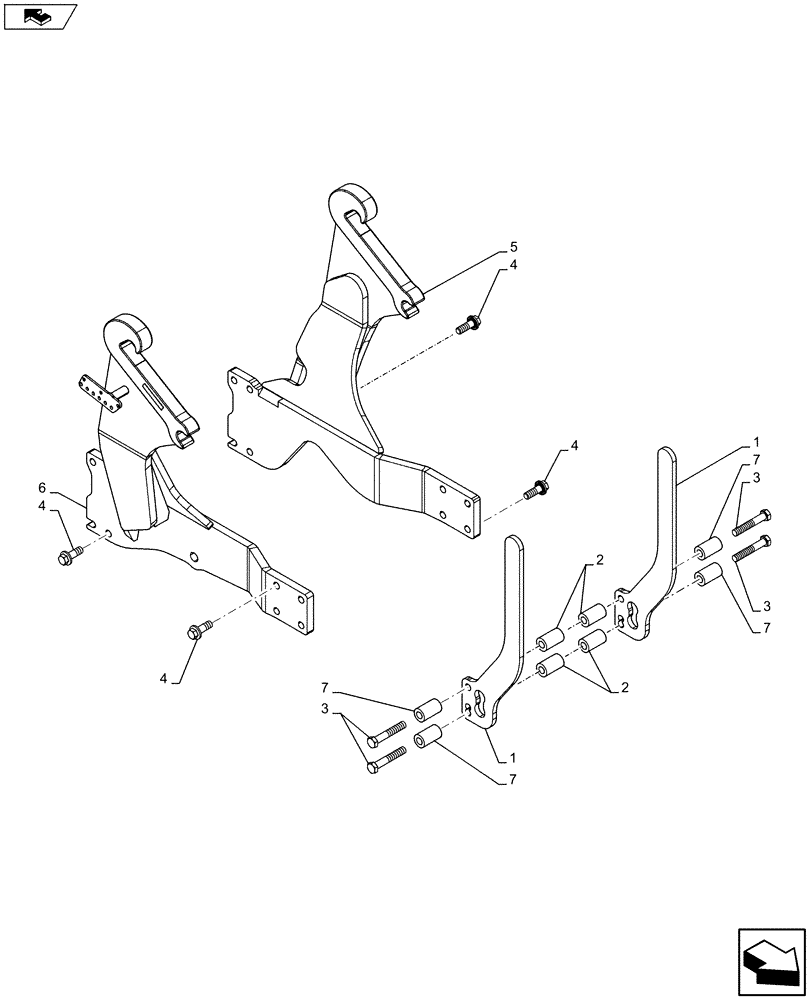

Запчасти Case IH MAXXUM 110 (82.100.AI[01]) - VAR - 332821 - LOADER ARM, SUPPORT (82) - FRONT LOADER & BUCKET

1

87652548

BRACKET

2шт.

2

47057794

SPACER,22mm ID x 42mm OD x 70mm L

4шт.

3

47057711

SCREW,M20 x 2.5 x 130mm

4шт.

4

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

16шт.

5

84473365

FRAME

LH

1шт.

6

84473364

FRAME

RH

1шт.

7

47057709

SPACER,22mm ID x 42mm OD x 10mm L

4шт.
