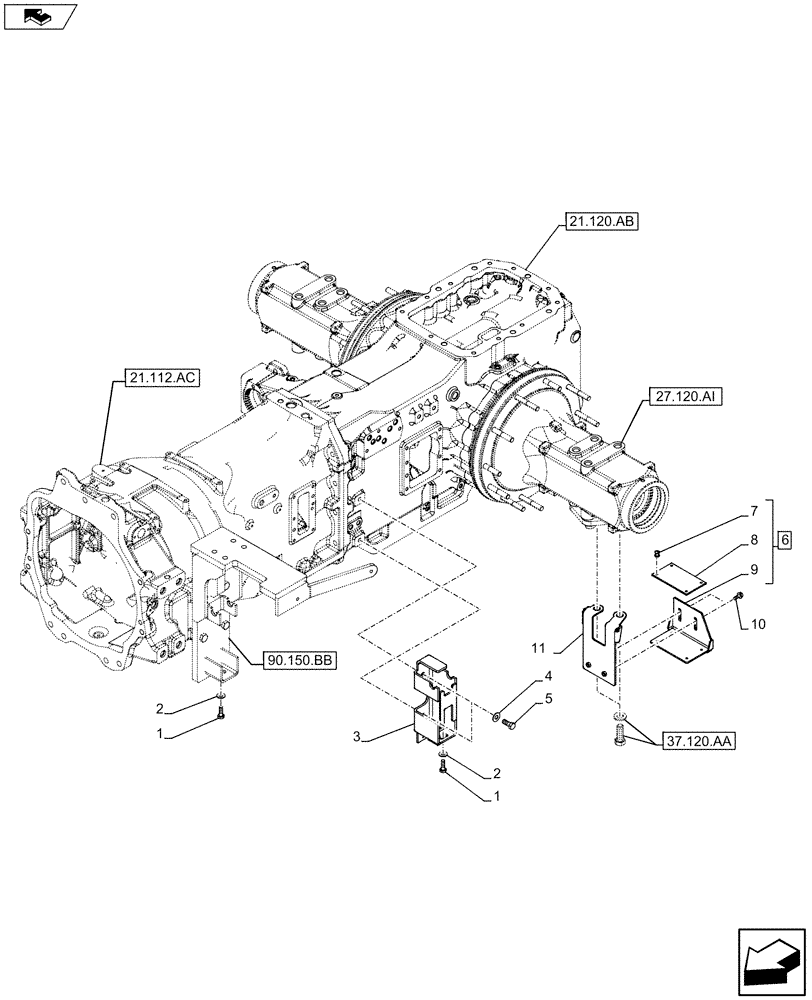

Запчасти Case IH MAXXUM 110 (10.216.AI[03]) - VAR - 390142 - FUEL TANK, SUPPORT (10) - ENGINE

1

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

2

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

3

47381066

SUPPORT

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

5

86637971

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

84567385

SUPPORT

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Rivet, Incl in 6

4шт.

8

84567368

RUBBER PAD

1шт.

9

84565248

SUPPORT

ASSY, Incl 7 - 9

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

84565189

SUPPORT

1шт.
