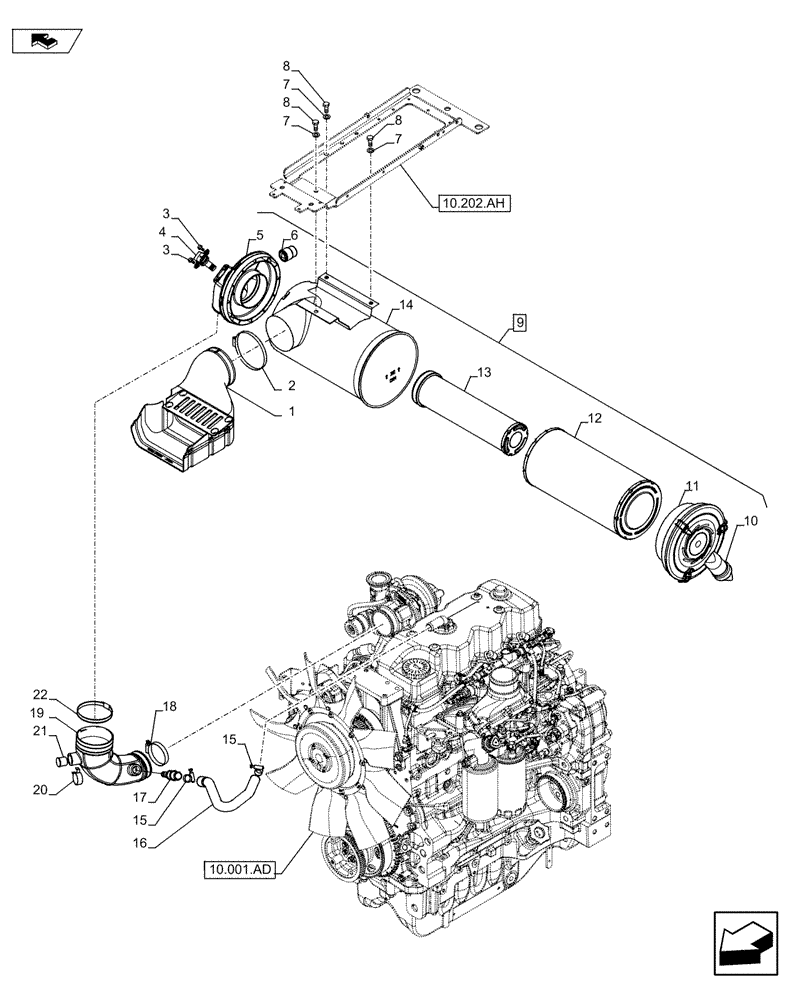

Запчасти Case IH MAXXUM 110 (10.202.AB[02]) - VAR - 335822, 391189 - AIR CLEANER & INTAKE SYSTEM (10) - ENGINE

1

87522373

DUCT

1шт.

2

13001490

HOSE CLAMP,Worm Gear, 110mm/130mm x 9mm W, CST, ZND

110-130 MM ZND

1шт.

3

13387570

HOSE CLAMP

M6X12 FULL 8.8 ZND

1шт.

4

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 9

1шт.

6

82036459

CLAMP,90mm - 110mm

1шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

9

84327270

AIR CLEANER

ASSY, Incl 5, 6, 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Incl in 9

1шт.

12

82028148

AIR FILTER

1шт.

13

82028149

AIR FILTER

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

15

82039344

HOSE CLAMP,20mm - 32mm

20X32X12 CST ZND

2шт.

16

84426719

HOSE

1шт.

17

87393930

TUBE,23.5 mm OD x 118 mm L

1шт.

18

87313786

HOSE CLAMP,Worm Gear, 70mm/90mm x 12mm W, CST ZND

70X90MM CST ZND

1шт.

19

84478547

INTAKE AIR HOSE

1шт.

20

13387570

HOSE CLAMP

1шт.

21

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

22

82036459

CLAMP,90mm - 110mm

1шт.
