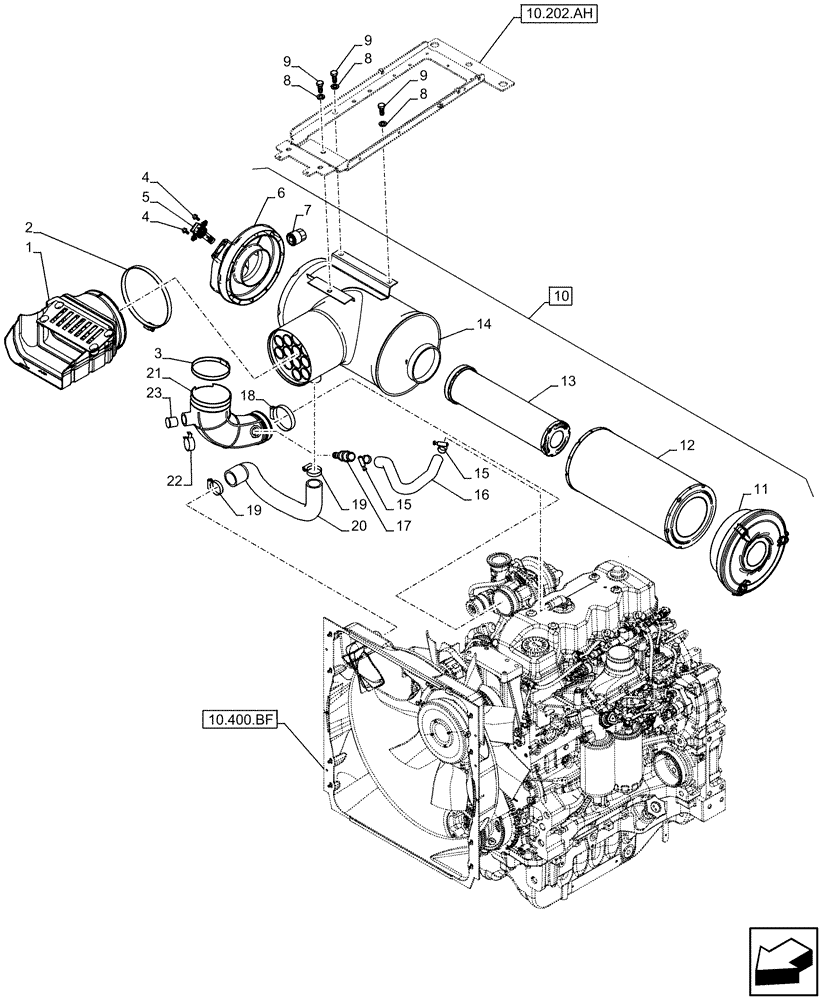

Запчасти Case IH MAXXUM 110 (10.202.AB[01]) - VAR - 330189, 332189, 743763 - AIR CLEANER & INTAKE PARTS (10) - ENGINE

1

87518691

DUCT

1шт.

2

82021427

CLAMP

1шт.

3

82036459

CLAMP,90mm - 110mm

1шт.

4

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M6X12 FULL 8.8 ZND

1шт.

5

13387570

HOSE CLAMP

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 10

1шт.

7

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

10

84326532

AIR CLEANER

ASSY, Incl 6, 7, 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Incl in 10

1шт.

12

82028976

AIR FILTER

1шт.

13

82028149

AIR FILTER

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 10

1шт.

15

82039344

HOSE CLAMP,20mm - 32mm

20X32X12 CST ZND

2шт.

16

84426719

HOSE

1шт.

17

87393930

TUBE,23.5 mm OD x 118 mm L

1шт.

18

87313786

HOSE CLAMP,Worm Gear, 70mm/90mm x 12mm W, CST ZND

70X90MM CST ZND

1шт.

19

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

30X45MM STL ZND

2шт.

20

84479091

HOSE

1шт.

21

84478547

INTAKE AIR HOSE

1шт.

22

13387570

HOSE CLAMP

1шт.

23

82019459

PLUG,Polypropylene Air cleaner hose

1шт.
