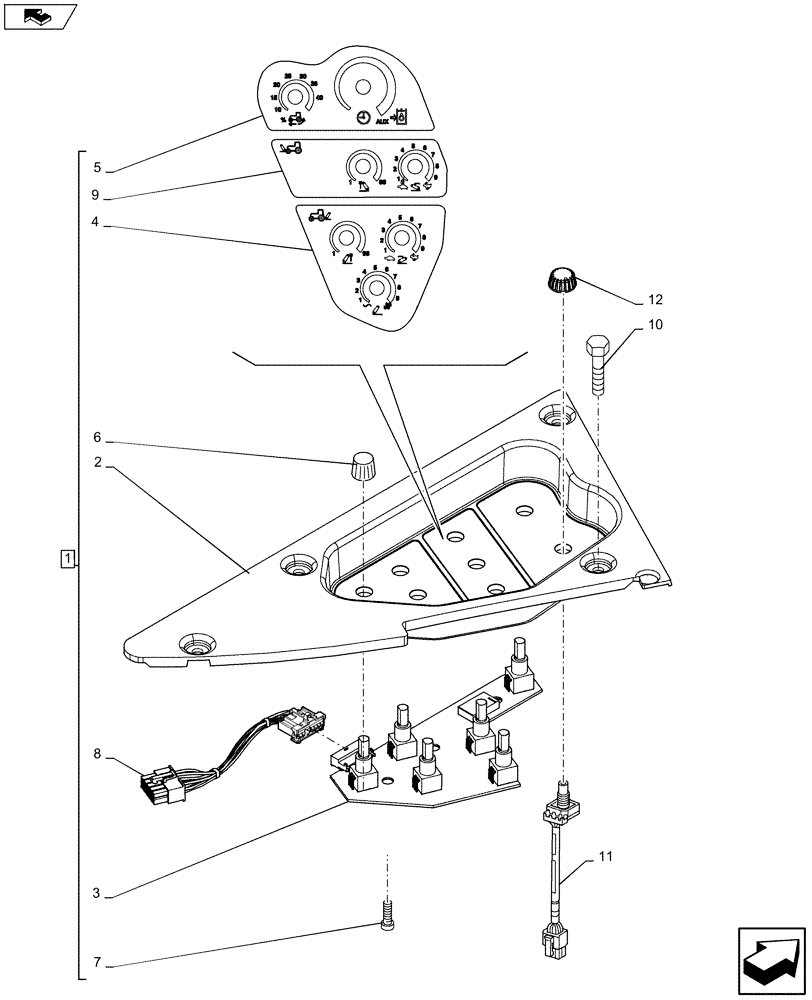

Запчасти Case IH MAXXUM 110 (55.512.CS[05]) - VAR - 390021 - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

84394113

ELECTRIC PANEL

ASSY, Incl 2 - 8

1шт.

2

87486096

PANEL

1шт.

3

NSS

NOT SOLD SEPARAT

Printed Circuit, Incl in 1

1шт.

4

84217912

DECAL

EDC, Rear Hitc

1шт.

5

84217909

DECAL

EDC, with Slip LH EHR

1шт.

6

87584684

KNOB

6шт.

7

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

8

84395364

WIRE HARNESS

1шт.

9

84394083

DECAL

EDC, EFH

1шт.

10

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

11

87755846

POTENTIOMETER,5V, 30mA, 150mW

EHR Flow Control

1шт.

12

87454709

KNOB

1шт.
