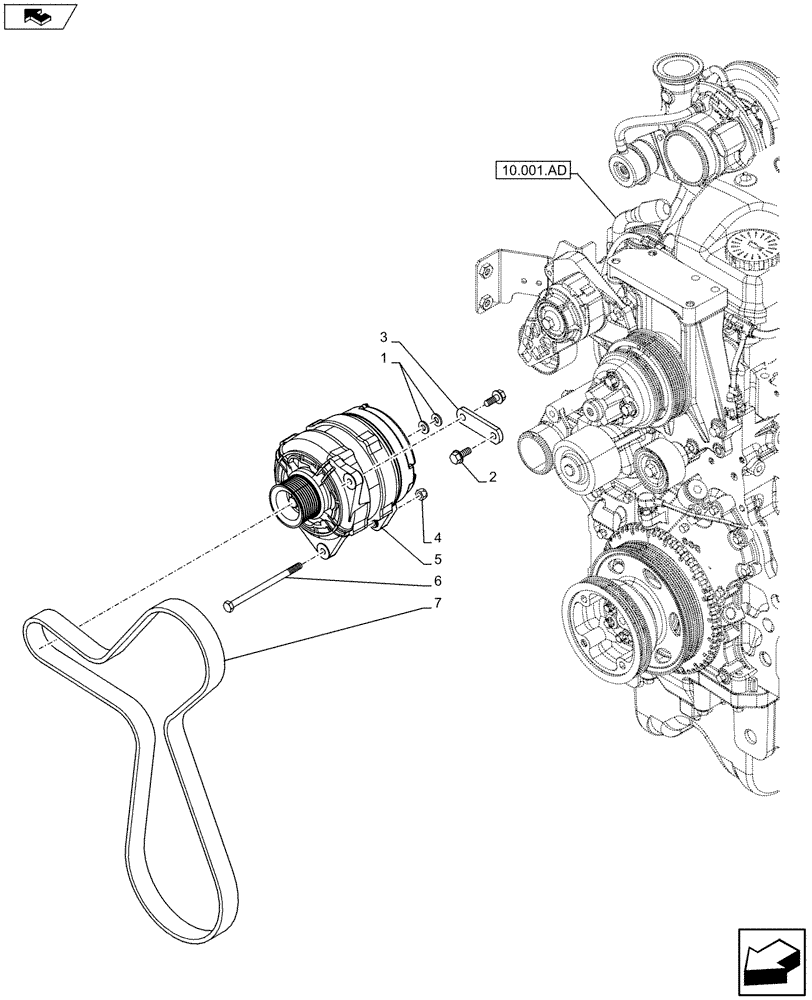

Запчасти Case IH MAXXUM 110 (55.301.AA[02]) - VAR - 332192 - ALTERNATOR (150A) (55) - ELECTRICAL SYSTEMS

1

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

3

87802805

SUPPORT

1шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

5

84141453

ALTERNATOR,14V, 150A, W/ Pulley

150A

1шт.

5

84141453R

ALTERNATOR,14V, 150A

150A

1шт.

5

84141453C

CORE-GENERATOR

Return Number

1шт.

6

16202224

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

1шт.

7

4899178

V-BELT,28.48 mm W x 1550.00 mm L, 8 Ribs

1шт.
