Запчасти Case IH MAXXUM 110 (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

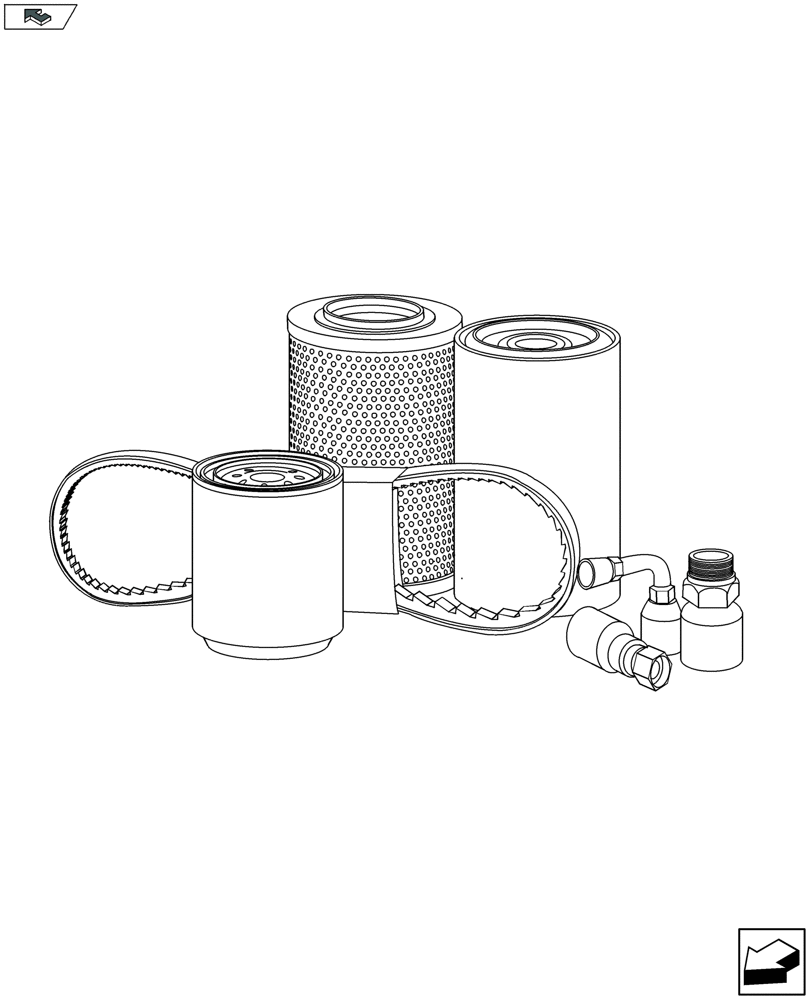

Схема запчастей Case IH MAXXUM 110 - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

84169162

SENSOR

Transmission Speed

1шт.

2

84243033

SENSOR

Hydro

1шт.

3

84541361

SENSOR

PTO

1шт.

4

4899178

V-BELT,28.48 mm W x 1550.00 mm L, 8 Ribs

Engine

1шт.

5

84344776

V-BELT,14mm W x 940mm L, 4 Ribs

Air Conditioning

1шт.

6

84536660

V-BELT,14mm W x 1065mm L, 4 Ribs

for Air Brakes

1шт.

7

4894139

PLUG,Hex Soc, M22 x 1.5

Engine Oil Pan

1шт.

8

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Drain Plug

1шт.

9

4895202

FILLER CAP

Engine Oil

1шт.

10

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

Engine Oil Filler Cap

1шт.

13

84322388

THERMOSTAT

1шт.

14

2853552

SENSOR

Pressure on Engine Oil Pump

1шт.

15

4897242

SENSOR

Engine Speed Rate

1шт.

16

2859674

SENSOR,Oil Pressure

Engine Oil Pressure &Temperature

1шт.

17

4897224

SENSOR

Thermosensor

1шт.

18

82017873

SENSOR

Pressure &Temperature

1шт.

19

2853552

SENSOR

Pressure on Engine Oil Pump

1шт.

20

84043184

SENSOR

Clogging Indicator

1шт.

21

87482355

SENSOR

Humidity Temperature on Air Cleaner

1шт.

22

84414466

SENSOR

Denox

1шт.

23

47367178

SENSOR

Exhaust System Temperature

1шт.

24

87564694

PROBE

Transm. Oil Temperature

1шт.

25

87564684

SWITCH ASSY

Transm. Oil Pressure

1шт.

26

82028133

SENSOR,3/8"-18

Transm. Temperature

1шт.

27

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

28

87395493

PRESSURE SWITCH

Transm. Oil Pressure

1шт.

29

82025340

RESTRICTION SWITCH

Vacuum

1шт.

30

82033971

FUSE,100A, Maxi, Violet

2шт.

31

87283179

BULB,H4, 12V, 60/55W

H4 12V - 55/60W

2шт.

32

139119A1

BULB,#886, 12V, 50W

2шт.

33

10857790

BULB,R10W, 12V, 5W

2шт.

34

44995162

BULB,T-3 1/4, 12.8V, 50W

885-12V, Worklamp

2шт.

35

9703399

BULB,H3, 12V, 55W

H3-12V

2шт.

36

14148090

BULB,PY21W, 12V, 21W

12V 21W, Tail/Turn Signal, L/Cab

2шт.

37

14144690

BULB,P21/5W, 12V, 21/5W

12V 21/5W, Tail/Stop Signal, W/Cab

2шт.

38

82013124

RELAY,12V, 30A

30 Amp

2шт.

39

529068

BULB,#1156, 12V, 21W

26W

2шт.

40

9847313

BULB,#894, 12V, 37.5W

Halogen

2шт.

41

82012872

RELAY,70A

Ignition Load Relay

2шт.

42

87561528

SWITCH ASSY

Ignition

1шт.

43

82030144

IGNITION KEY

1шт.

44

87304226

RELAY,12V, Combined, Black

Combined Wiper Module

1шт.

45

82023238

RELAY,12V, 20A

20 Amp

1шт.

46

82003697

RELAY,12V, 30A

Remote Control

1шт.

47

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

48

87577636

FLASHER UNIT

ISO

1шт.

49

84414345

FLASHER UNIT

NA

1шт.

50

82023624

FUSE,250A, Mega

250 Amp

2шт.

51

84174070

FUSE,30A, Orange

30 Amp

2шт.

52

84183837

FUSE,80A, Maxil, Natural

80 Amp, Maxifuse

2шт.

53

5190333

FUSE,40A, Maxi, Orange

40 Amp, Maxifuse

2шт.

54

5173264

FUSE,30A, Maxi, Green

30 Amp, Maxifuse

2шт.

55

10402190

FUSE,30A, Mini

25 Amp, Minifuse

2шт.

56

10401290

FUSE,25 amp Mini

30 Amp, Minifuse

2шт.

57

10401190

FUSE,20A, Mini, Yellow

20 Amp, Minifuse

2шт.

58

87524877

FUSE,15A, Mini, Blue

15 Amp, Minifuse

2шт.

59

87522597

FUSE,10A, Mini, Red

10 Amp, Minifuse

2шт.

60

84253578

FUSE,20A

60 Amp, Minifuse

2шт.

61

87304226

RELAY,12V, Combined, Black

Wiper Control

1шт.

62

82030798

RELAY,12V, 70A

70 Amp

1шт.

63

87494632

PRESSURE SWITCH,M12 x 1.5

1шт.

64

87384755

SWITCH ASSY

Brake Accumulator Pressure

1шт.

65

82014329

SWITCH

Trailer Brake Pressure

1шт.

66

87564762

SENSOR

Speed

1шт.

67

47132449

SWITCH

Brake Contactor

1шт.

68

82005257

SWITCH ASSY

Park Brake Contactor

1шт.

69

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

Выбрано товаров: 67
