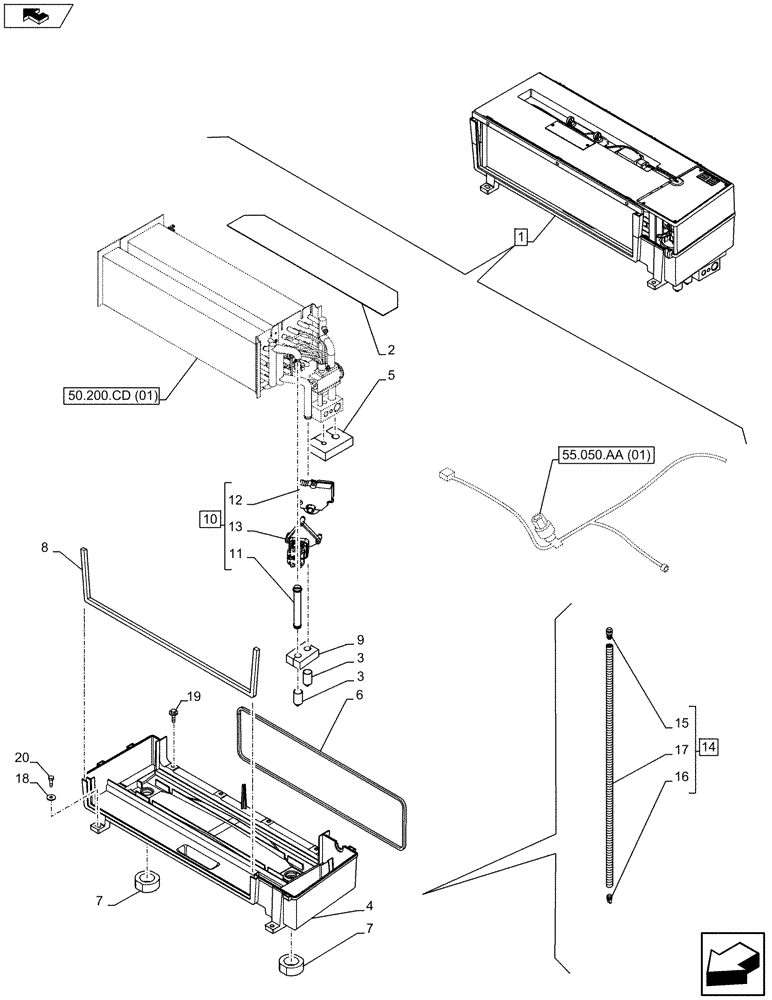

Запчасти Case IH MAXXUM 110 (50.200.CG[02]) - VAR - 390643 - COOLER HOUSING (50) - CAB CLIMATE CONTROL

1

47490413

AIR CONDITIONER

ASSY, incl 2 - 13

1шт.

2

82033453

PLATE

Drain

1шт.

3

82033261

CAP,5/8"

2шт.

4

82033005

HOUSING

1шт.

5

82028953

SEAL

Pipe Evaporator

1шт.

6

82024750

SEAL,1235mm L x 5mm Thk

Blower Duct Lower

1шт.

7

82028942

SEAL,32mm ID x 48mm OD x20mm Thk

Drain

2шт.

8

82023564

SEAL,765.6mm L x 8mm Thk

Housing Outlet Groove

1шт.

9

82028943

SEAL,20mm Thk

Pipe

1шт.

10

87540537

SHUT-OFF VALVE

ASSY, Incl 11 - 13

1шт.

11

87540534

PIPE

1шт.

12

87541625

ACTUATOR

1шт.

13

NSS

NOT SOLD SEPARAT

Watervalve, Incl in 10

1шт.

14

84232466

TUBE

ASSY, Incl 15 - 17

2шт.

15

84231998

DRAIN

1шт.

16

84232468

HOSE,25.40 mm ID x 800.00 mm

1шт.

17

84232000

CHECK VALVE

1шт.

18

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

19

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

20

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.
