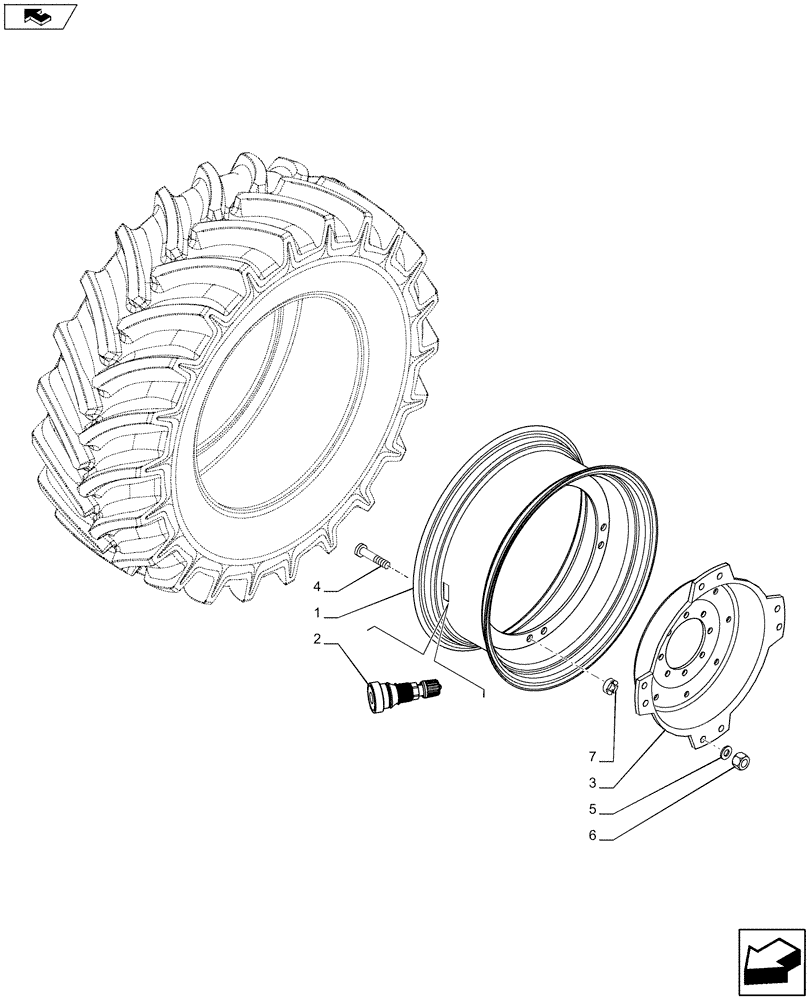

Запчасти Case IH MAXXUM 110 (44.520.AB[04]) - VAR 8365401, 8966401 - REAR WHEEL (DW15LX34) (44) - WHEELS

1

47388784

RIM

DW15LX34 MAVT

1шт.

2

87323751

PNEUMATIC VALVE

2шт.

3

82037311

WHEEL DISC

PCD 685.8

1шт.

4

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

8шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

8шт.

6

12164124

NUT,M16 x 1.5, Cl 8

8шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

8шт.
