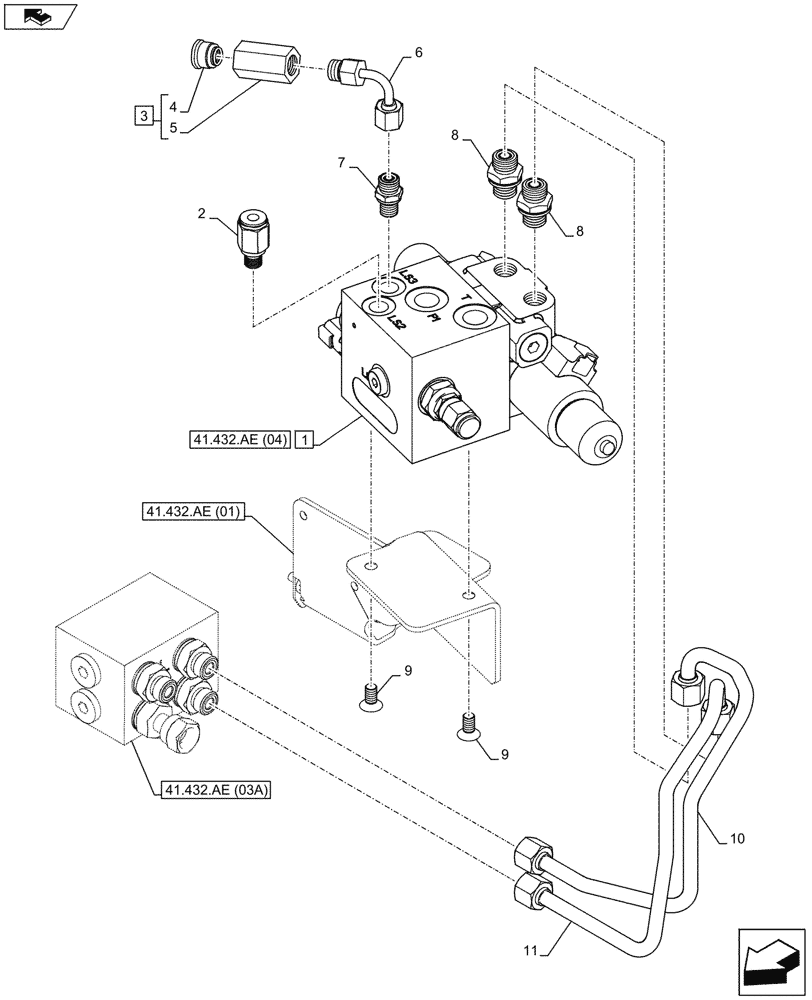

Запчасти Case IH MAXXUM 110 (41.432.AE[02]) - VAR - 332077, 335077, 391658 - AUTOGUIDANCE, VALVE, CONNECTOR, QUICK COUPLER (41) - STEERING

1

47499302

VALVE SECTION

Autoguidance LS Remoted, ASSY

1шт.

2

47595743

COUPLING,M12 x 1.5, 10mm ID, 38mm L

1шт.

3

47707619

HYD CONNECTOR

ASSY, Incl 4, 5

1шт.

4

47610635

FITTING

1шт.

5

47595747

ADAPTER,M18 x 1, 9/16" - 18 ORFS, 40mm L

1шт.

6

47595745

PIPE

LS3 Line on Valve

1шт.

7

84593994

HYD CONNECTOR,M12 x 1.5 ORB, 9/16" - 18 ORFS

1шт.

8

84382746

HYD CONNECTOR,M16 x 1.5 ORB, 11/16" - 16 ORFS

2шт.

9

14441921

SCREW,Flat Csk Hd, M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

47595756

PIPE

L Line on Valve

1шт.

11

47595758

PIPE

R Line on Valve

1шт.
