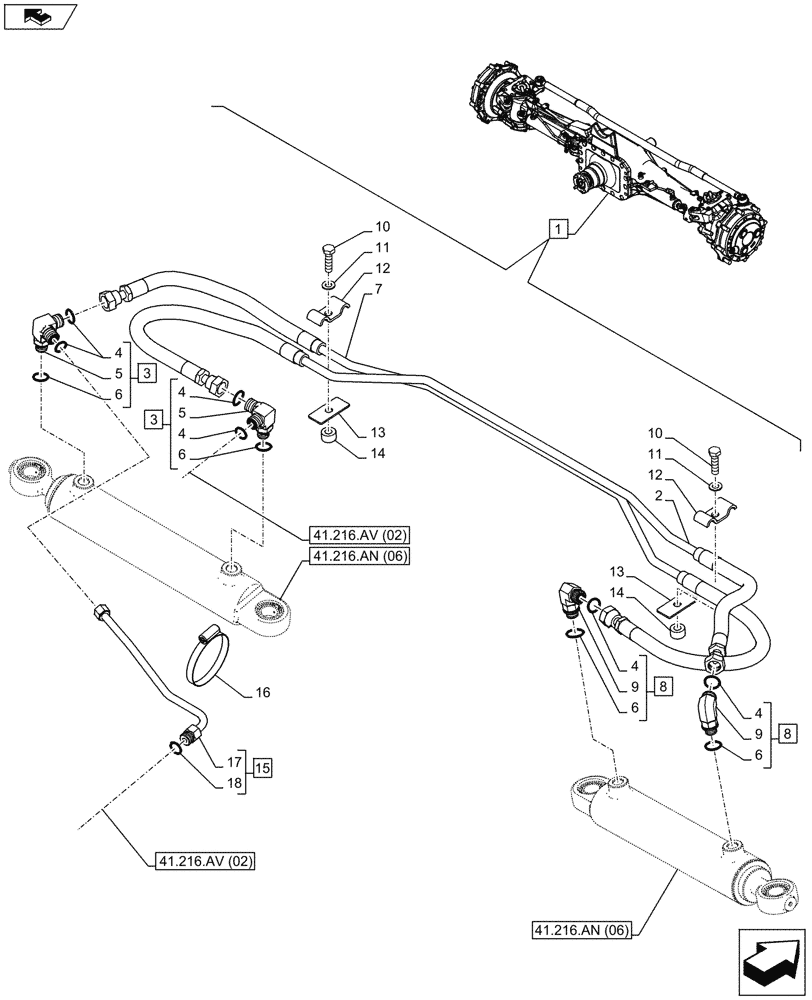

Запчасти Case IH MAXXUM 110 (41.216.AV[05]) - VAR - 330429 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING CYLINDER, LINE (41) - STEERING

1

87745936

LIVE FRONT AXLE

ASSY, Incl 2 - 18

1шт.

See also Axle Components in Figure 25.100.AA (05), 25.100.AD (05), 25.102.AC (11), 25.102.AE (02), 25.108.AA (05), 25.108.AB (06), 25.108.AB (07), 25.108.AG (05), 25.108.AN (05), 41.106.AD (02), 41.216.AN (06), 55.047.AA (05)

1шт.

2

47136898

FLEXIBLE HOSE,10.00mm OD x 1450.00mm

Steering, RH

1шт.

3

5188443

90 ELBOW

ASSY, Incl 4 (Qty 2), 5 (Qty 1), 6 (Qty 1)

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

6шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

7

47136888

FLEXIBLE HOSE,10.00mm OD x 1450.00mm

Steering, LH

1шт.

8

47127165

90 ELBOW

ASSY, Incl 4 (Qty 1), 6 (Qty 1), 9 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

5188504

BRACKET

2шт.

13

5188503

BRACKET

2шт.

14

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

15

87517475

HYD TUBE,10.00mm OD x 228.00mm, 50.00mm L

ASSY, Incl 17, 18

1шт.

16

13000990

COLLAR,60mm - 80mm, Worm Gear

80mm

1шт.

17

NSS

NOT SOLD SEPARAT

Tube, Incl in 15

1шт.

18

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.
