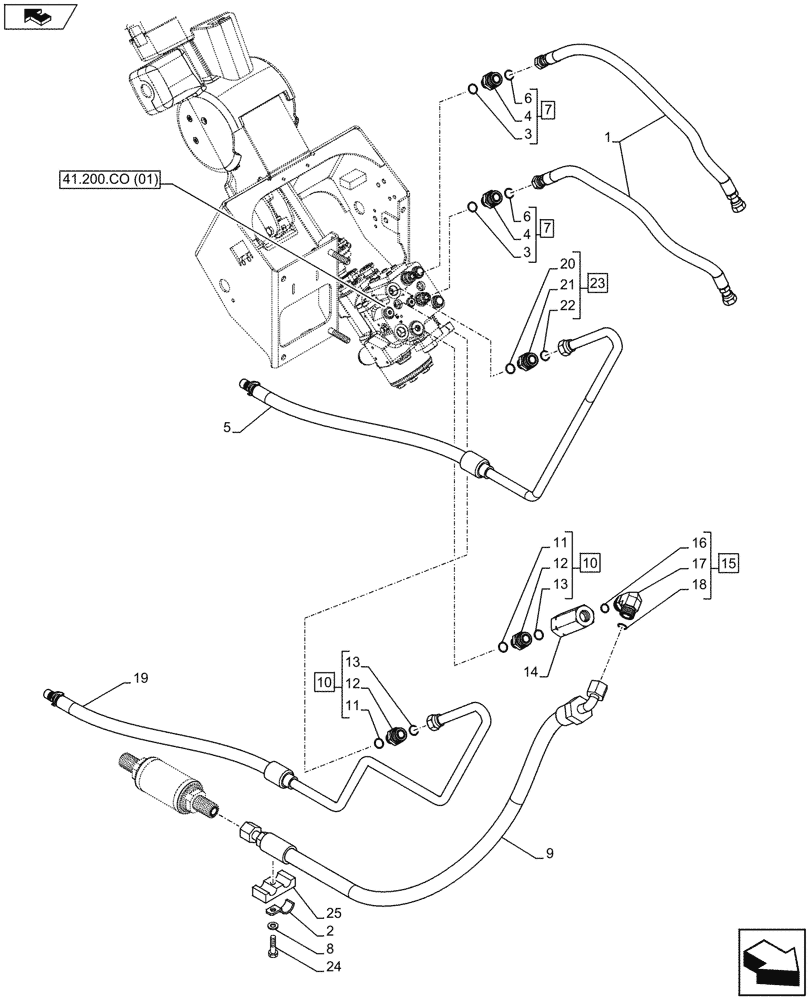

Запчасти Case IH MAXXUM 110 (41.200.AE) - VAR - 331658, 331659, 338928, 391658 - FAST STEERING WITH 113L/MIN CCLS PUMP, MOTOR PIPES (41) - STEERING

1

84555935

FLEXIBLE HOSE,12.7mm ID x 565mm L, SAE 100R2

2шт.

2

84606519

BRACKET

1шт.

3

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

5

84602604

PIPE

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl in 3, 4, 6

2шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

1шт.

9

84602602

RETURN PIPE

1шт.

10

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

ASSY, Incl 11 - 13

2шт.

11

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

2шт.

13

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

14

87350633

FILTER

1шт.

15

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 16 - 18

1шт.

16

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

84602607

HYD TUBE

1шт.

20

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 20 - 22

1шт.

24

10903221

SCREW,Hex, M6 x 40mm, Cl 8.8

1шт.

25

87571442

BRACKET

1шт.
