(41.106.AD[01]) - VAR - 390409, 330414, 330427 - CLASS 3, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING TIE-ROD

Запчасти Case IH MAXXUM 110 (41.106.AD[01]) - VAR - 390409, 330414, 330427 - CLASS 3, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING TIE-ROD (41) - STEERING

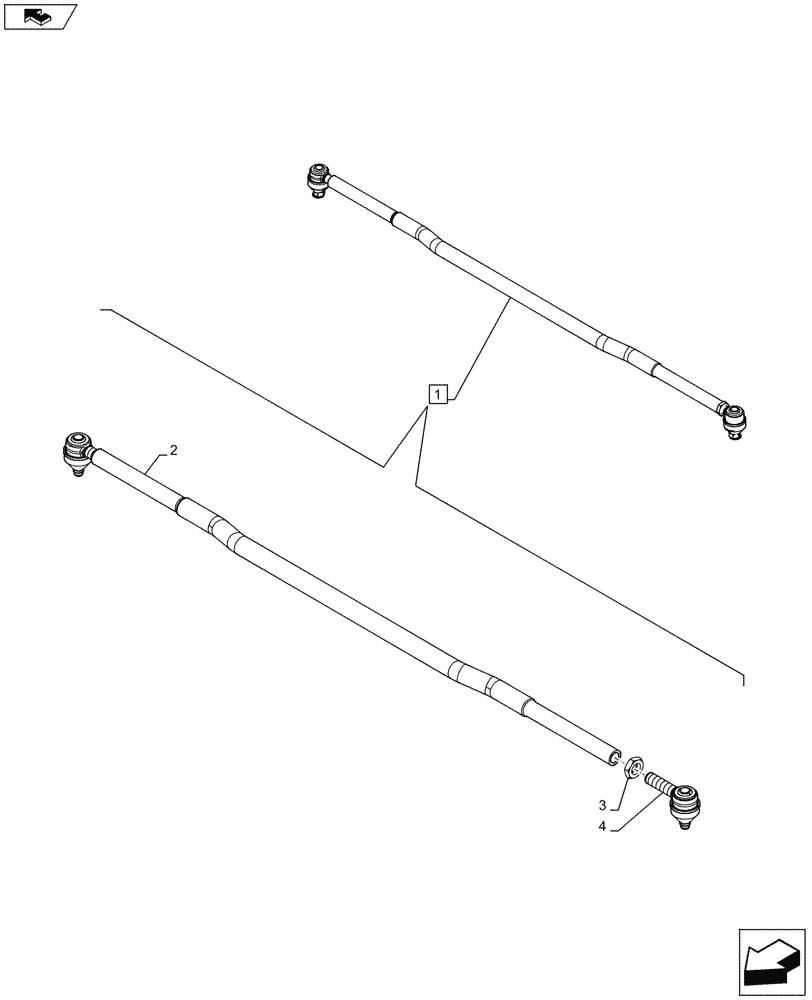

Схема запчастей Case IH MAXXUM 110 - (41.106.AD[01]) - VAR - 390409, 330414, 330427 - CLASS 3, FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING TIE-ROD (41) - STEERING
2
3
home
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5197798

TRACK ROD ASSY,M24 x 1.5mm ID x 1597mm L

ASSY, Incl 2 - 5

1шт.

2

5197797

TRACK ROD ASSY,1597mm L

1шт.

3

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

4

87542553

BALL JOINT

1шт.

Выбрано товаров: 4
