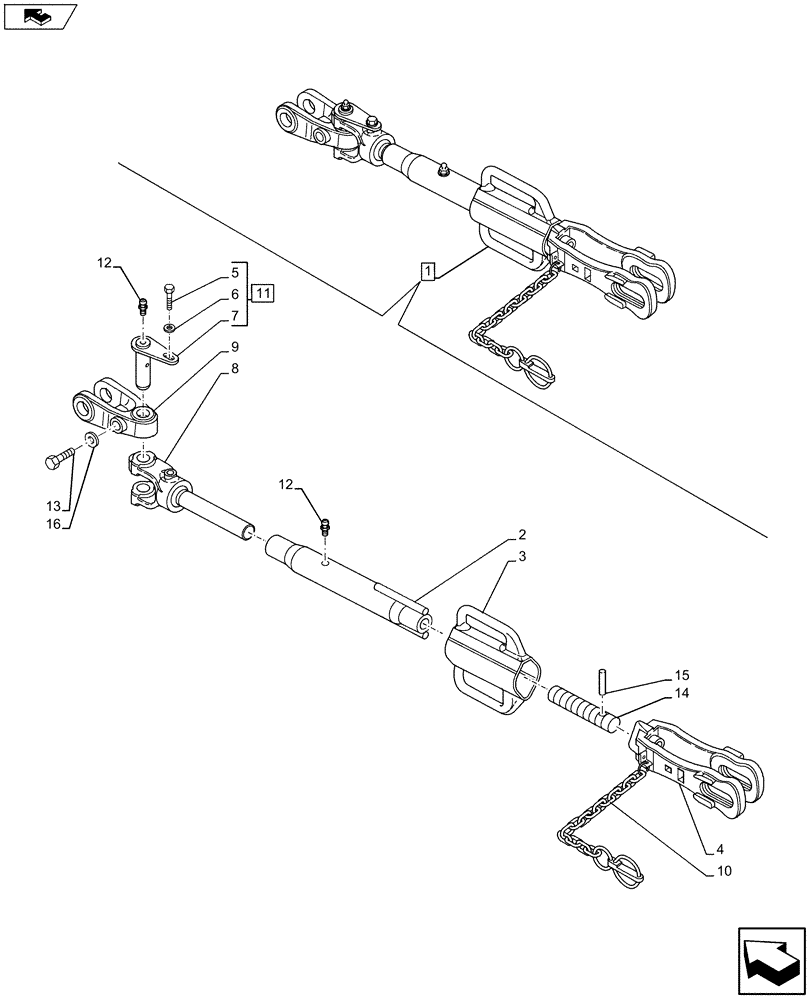

Запчасти Case IH MAXXUM 110 (37.120.AV[01]) - VAR - 390911, 743811 - ADJUSTABLE LIFT ROD - BREAKDOWN (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47133836

TIE-ROD

ASSY LH, Incl 2 - 16

1шт.

2

47125893

TUBE,M30 x 3

1шт.

3

5198072

HANDLE

1шт.

4

5198070

YOKE,M33 x 3

1шт.

5

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

M10X1.25X22 FULL 8.8 ZND DIN

1шт.

6

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.50 X 21 X 2 MM CST ZND

2шт.

7

47130640

PIN,25mm OD x 92mm L

2шт.

8

47130836

TIE-ROD,M33 x 3

1шт.

9

47130648

YOKE,28mm D x 25mm D

1шт.

10

47133914

LINCH PIN

2шт.

11

47130642

PIN,25mm OD x 92mm L

ASSY, Incl 5 - 7

1шт.

12

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

3шт.

13

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

14

47125894

THREADED ROD

1шт.

15

14607411

ROLL PIN

1шт.

16

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.50 X 21 X 2 MM CST ZND

1шт.
