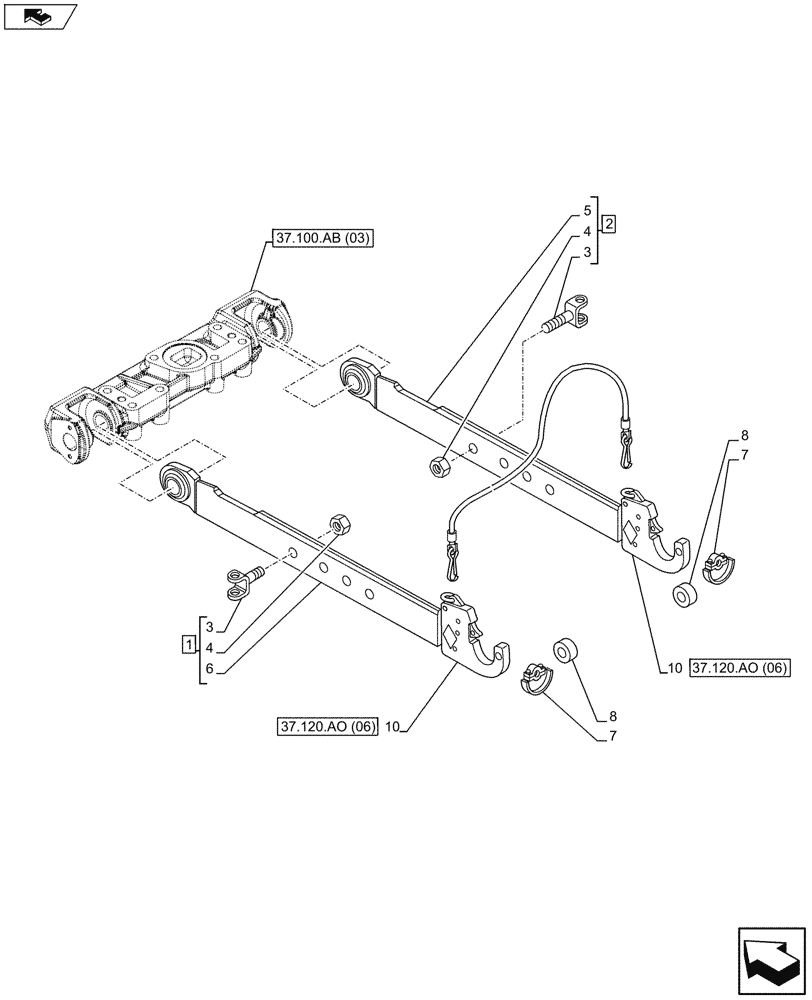

Запчасти Case IH MAXXUM 110 (37.120.AO[05]) - VAR - 332923 - REAR 3 POINT HITCH, LOWER LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47125170

LIFT ARM

ASSY, Incl 3, 4, 6

1шт.

2

47125169

LIFT ARM

ASSY, Incl 3 - 5

1шт.

3

5190955

YOKE,M24 x 2

1шт.

4

12164511

NUT,M24 x 2, Cl 8

1шт.

5

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

7

5130779

ECCENTRIC,11mm OD, Shaft Diameter 29.00mm

2шт.

7

5130780

ECCENTRIC,15.5mm OD, Shaft Diameter 37.00mm

2шт.

8

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

8

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

9

5116063

ROPE,4500mm L

1шт.

10

5189332

HOOK

ASSY

2шт.
